Server Rack 800 MB800
42U
Variant Specifications
Warranty:
Size:
Weight:
Country of Origin:
Delivery Time (if import required):
Warranty:
Weight:
Country of Origin:
More Details:
Import Lead Time:
Package:
Available options
1% OFF
Rs 142,300.88
List: Rs 143,362.83
MB800 Server Rack Cabinet - 42U
The MB800 Server Cabinet is a high-quality and durable network rack cabinet designed for data centers, ISP networks, enterprise IT infrastructure, telecom rooms, CCTV systems, and server installations.
Built with SPCC high-quality cold-rolled steel, the MB800 cabinet provides excellent strength, airflow, cable management, and equipment protection. It supports a maximum static load of 800KG and complies with major international rack cabinet standards.
Product Standards
| ANSI / EIA RS-310-D |
| IEC297-2 |
| DIN41491 PART1 |
| DIN41491 PART7 |
| ETSI Industry Standards |
| Protection Level: IP20 |
Key Features
| High-quality SPCC cold-rolled steel construction |
| Front single mesh door with hexagonal ventilation design |
| Rear single mesh door with optional double-door design |
| Removable side doors with quick-release buckle system |
| Supports front cable management vertical slots |
| Adjustable top and bottom cable entry system |
| Caster wheels and support feet can be installed simultaneously |
| Maximum static load capacity up to 800KG |
| Front and rear adjustable U-marked mounting rails |
| High-speed silent cooling fan installed on top |
| Adjustable internal shelf positioning |
| Professional electrostatic powder coating surface finish |
Material & Plate Thickness
| Part | Thickness |
|---|---|
| U Upright Columns | 2.0 mm |
| Door Panels | 1.2 mm |
| Top Cover | 1.2 mm |
| Bottom Base | 1.2 mm |
| Laminate Shelf | 1.2 mm |
Technical Parameters
| No | Component | Quantity | Material | Surface Treatment | Remarks |
|---|---|---|---|---|---|
| 1 | Front Door | 1 PC | Mesh Door | Electrostatic Powder Coating | Hexagonal Mesh, 1.2mm Thickness |
| 2 | Back Door | 1 PC | Mesh Door | Electrostatic Powder Coating | Hexagonal Mesh, 1.2mm Thickness |
| 3 | Side Doors | 2 PCS | Cold Rolled Steel | Electrostatic Powder Coating | Removable Iron Door |
| 4 | Top Cover | 1 PC | Cold Rolled Steel | Electrostatic Powder Coating | --- |
| 5 | Bottom Base | 1 PC | Cold Rolled Steel | Electrostatic Powder Coating | --- |
| 6 | Fan Tray | 1 PC | Cold Rolled Steel | Electrostatic Powder Coating | 600D = 2 Fans, 800-1000D = 4 Fans |
| 7 | Frame | 2 PCS | Cold Rolled Steel | Electrostatic Powder Coating | --- |
| 8 | U Upright Columns | 4 PCS | Cold Rolled Steel | Electrostatic Powder Coating | Silk Printed Scale |
| 9 | Cable Management Slot | 2 PCS | Cold Rolled Steel | Electrostatic Powder Coating | --- |
| 10 | Beam | 4-6 PCS | Cold Rolled Steel | Electrostatic Powder Coating | Depends on Rack Size |
| 11 | Laminate Shelf | 1-3 PCS | Cold Rolled Steel | Electrostatic Powder Coating | Depends on Rack Size |
| 12 | Castor Wheels | 4 PCS | --- | --- | --- |
| 13 | Support Feet | 4 PCS | M12 | --- | --- |
| 14 | Screw Nut Set | 40 SETS | M6 × 12 | --- | --- |
| 15 | 6-Bit Power Socket | 1 PC | --- | --- | Included |
Surface Preparation
| Degreasing |
| Pickling |
| Rust Resistant Phosphorization |
| Pure Water Cleaning |
| Electrostatic Powder Coating |
Note: The MB800 Server Cabinet is suitable for servers, switches, routers, patch panels, CCTV systems, fiber optic networking, telecom infrastructure, and enterprise rack deployments.
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.
No videos for this product yet
Once videos are added, you’ll see them here as a gallery.
Related Products
800G OSFP112DD SMF Duplex LC 1310 nm
Contact for price
IP Telephone
Rs 10,000
Rs 9,999
DWDM SFP 10G 80KM SM LC, DDM
Rs 30,973
Rs 29,000

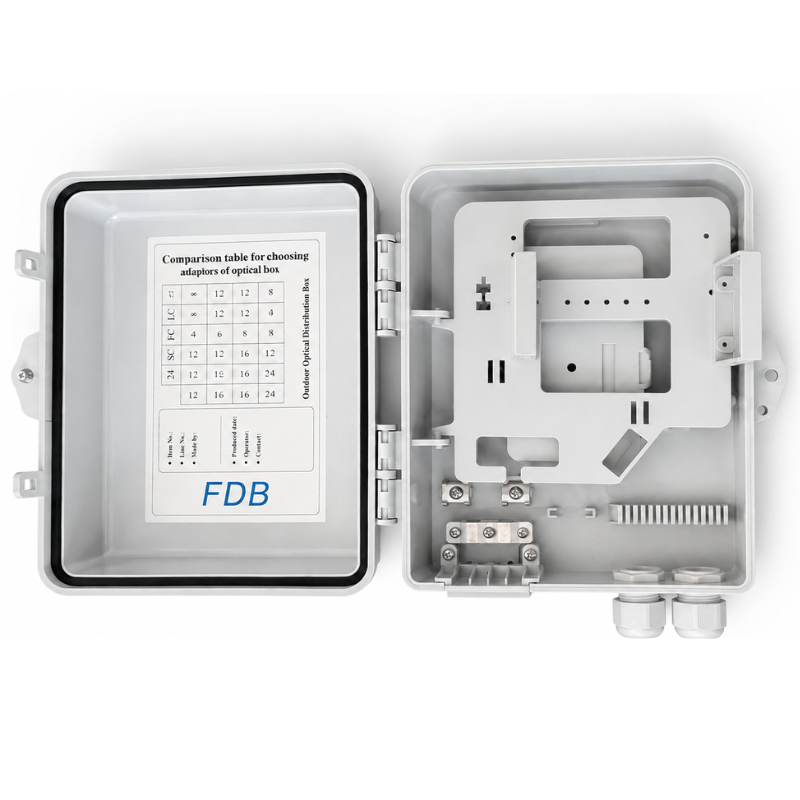

DB Box Heavy
