QSFP 100G Dual LC SM DDM

80km

Brand: D-TECH

Variant Specifications

Warranty:

Weight:

Country of Origin:

More Details:

Import Lead Time:

Package:

← See all QSFP 100G Dual LC SM DDM options

Available options

10km

20km

40KM

80km

60km

Rs 182,966.37

Description

The RQS-103G-LR4-LW QSFP28 optical transceiver is designed for 100 Gigabit Ethernet and 4×28 G OTN client interfaces over single-mode fiber.
It complies with QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4, and ITU-T G.959.1/G.709 (including Supplement 39 – G.sup39).

Digital diagnostic monitoring (DDM) is supported via the I²C interface.
The module is fully RoHS-6 compliant.

Absolute Maximum Ratings

Operating beyond these limits may cause permanent damage to the module.

Parameter	Symbol	Min.	Max.	Unit	Notes
Supply Voltage	Vcc	–0.5	3.6	V	—
Storage Temperature	Ts	–40	+85	°C	—
Operating Case Temperature	Tc	0	+70	°C	—
Relative Humidity	Rh	10	85	%	Non-condensing
Damage Threshold (per lane)	THd	—	5.5	dBm	—

Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Notes
Supply Voltage	Vcc	3.135	3.3	3.465	V	—
Operating Case Temperature	Top	0	—	70	°C	—
Link Distance (G.652 fiber)	—	—	—	10	km	—
Module Supply Current	Icc	—	1.12	—	A	Steady state
Power Dissipation	—	—	—	4.0	W	—

Transmitter Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Notes
Data Rate (per lane)	—	25.78125	—	27.9525	Gbps	—
Differential Input Voltage Swing	Vin,pp	—	—	900	mV	At 1 MHz
Rise/Fall Time (20–80%)	Trise/Tfall	—	10	—	ps	—
Input Differential Impedance	Zin	—	100	—	Ω	—
Eye Width	EW15	—	0.46	—	UI	—
Eye Height	EH15	—	95	—	mV	—

Receiver Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Notes
Data Rate (per lane)	—	25.78125	—	27.9525	Gbps	—
Differential Output Voltage Swing	Vout,pp	—	—	900	mV	At 1 MHz
Common Mode Noise (RMS)	Vrms	—	—	17.5	mV	—
Rise/Fall Time (20–80%)	Trise/Tfall	—	12	—	ps	—
Output Differential Impedance	Zout	90	100	110	Ω	—
Eye Width	EW15	—	0.57	—	UI	—
Eye Height	EH15	—	228	—	mV	—

Optical Characteristics

(EOL, Top = 0 °C to +70 °C, Vcc = 3.135 V to 3.465 V)

Parameter	Min.	Typ.	Max.	Unit	Notes
Signaling Speed (per lane)	25.78125	—	27.9525	Gbps	—
Launch Optical Power (per lane)	–4.3	—	–1.5	dBm	—
Total Launch Optical Power	—	—	10.5	dBm	—
Transmit Wavelength (4 lanes)	1294.53–1310.19	—	—	nm	LAN-WDM grid
Optical Modulation Amplitude (OMA) per Lane	–1.3	—	4.5	dBm	—
Extinction Ratio	4	—	—	dB	—
Side Mode Suppression Ratio	30	—	—	dB	—

Ask a question

Questions & answers

0 question(s)

No questions yet. Be the first to ask!

0.0

0 ratings

5★

4★

3★

2★

1★

Write a review

Customer reviews

No reviews yet. Be the first to review this product.

Product Videos

Watch demos, overviews and installation guides related to this product.

1 video

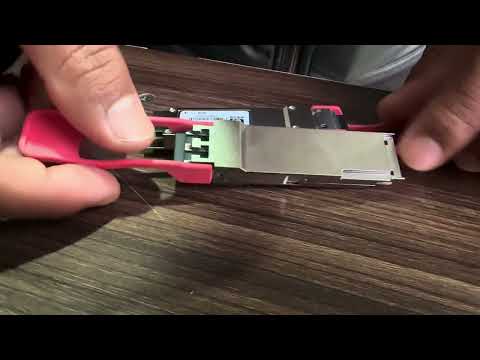

QSFP 100G Dual LC SM DDM
