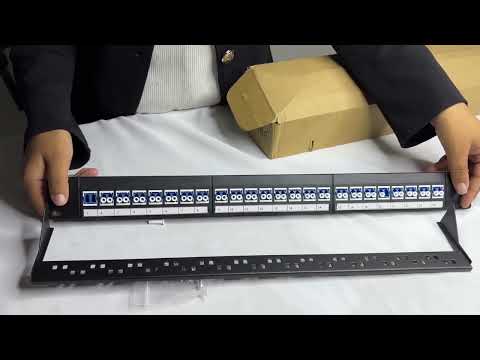

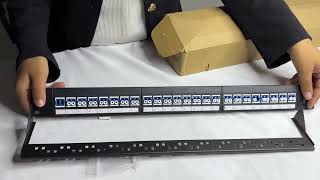

1U Rack-Mounted LC Duplex Fiber Patch Panel
Overview
This 1U rack-mounted fiber patch panel is designed for high-density fiber optic cabling systems. It provides easy management, protection, and organization of LC duplex connections in data centers, telecom rooms, and enterprise network racks.
Key Features
Form Factor: 1U 19-inch standard rack mount
Adapter Type: LC Duplex (Blue, Singlemode or Multimode options)
Capacity: Up to 24 LC duplex adapters (48 fibers)
Material: Cold-rolled steel, black powder-coated finish
Cable Management: Rear cable support and labeling slots for easy maintenance
Compatibility: Suitable for SC/LC/ST adapters (custom options available)
Front Access: Easy plug-and-play operation for patching and maintenance
Installation: Fits standard 19-inch network racks and cabinets
Technical Specifications
| Parameter | Details |
|---|
| Rack Height | 1U (44.45 mm) |
| Connector Type | LC Duplex |
| Number of Ports | 24 ports (48 fibers) |
| Material | SPCC Steel |
| Surface Finish | Electrostatic powder coating |
| Color | Black |
| Operating Temperature | -20°C to +60°C |
| Mount Type | 19" Rack Mount |
| Fiber Type | SM (OS2) / MM (OM3/OM4) |
Applications
Data Centers and Server Rooms
Fiber Distribution Frames
FTTH / FTTx Network Systems
Enterprise and Campus Network Cabling
