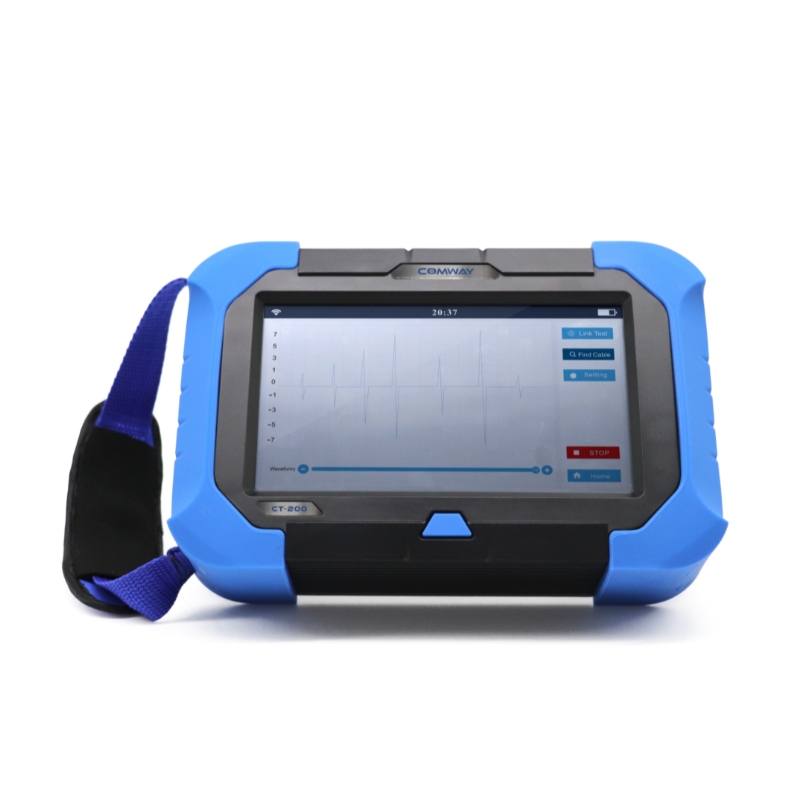

COMWAY Cable Seeker

#1495

Share Login to Favorite
0.0
(0 reviews)
Available Other Models :
Pack Contains: pc(1)
Loading...

Loading variant details...

Variant Specifications

Product Specifications

Warranty: 1 year
Try our secure checkout with Connect IPS QR Pay.
Fiber Optical Testing Equipments

-0.00% Rs156637.17

List Price: $156637.17
Rs156,637.17 now per pc(1)
Checking delivery availability...
Checking for Featured Offer...


Product overview:

Under the complex wiring environment, it is difficult to locate faults during the construction and long-term use of optical cables.With COMWAY cable seeker,On basis of optical elastic effect, knock on the cables, the bending or sloshing signals will be converted into visual and audio signals by coherent demodulation and shown on the cable COMWAY seeker in waveform and be heard by the technician, then help the technician to track and identify the target cable quickly. This is a non-destructive technology to accurately locate and identify the target optical cable in the environment of manhole, wells, tunnel, pipe-lines and overhead poles.

Technical parameter:

Parameter CT-201 CT-202 CT-204
Measurement Single fiber testing (No Loop) Single fiber testing (No Loop) Single fiber testing (No Loop)
Wavelength 1550nm 1550nm 1550nm
Test distance 20km PC/UPC 20km 40km PC/UPC
Connector at the end broken cable broken cable broken cable
Connector on the machine FC/APC FC/APC FC/APC
Display 7inch LCD touch screen Real-time waveform display Real-time waveform display
Output model Real-time audio prompt Real-time audio prompt Real-time audio prompt
Battery capacity 11.1V, 6400mAh, continuous work ≥12 hours 11.1V, 6400mAh, continuous work ≥12 hours 11.1V, 6400mAh, continuous work ≥12 hours
Power supply DC 15V/4A DC 15V/4A DC 15V/4A
Dimensions (H×W×L) 70148230mm 70148230mm 70148230mm
Weight ≤1.5Kg ≤1.5Kg ≤1.5Kg
Working temperature -10-55°C -10-55°C -10-55°C
Storage temperature -20-70°C -20-70°C -20-70°C
