D-TECH Fiber Cleaver

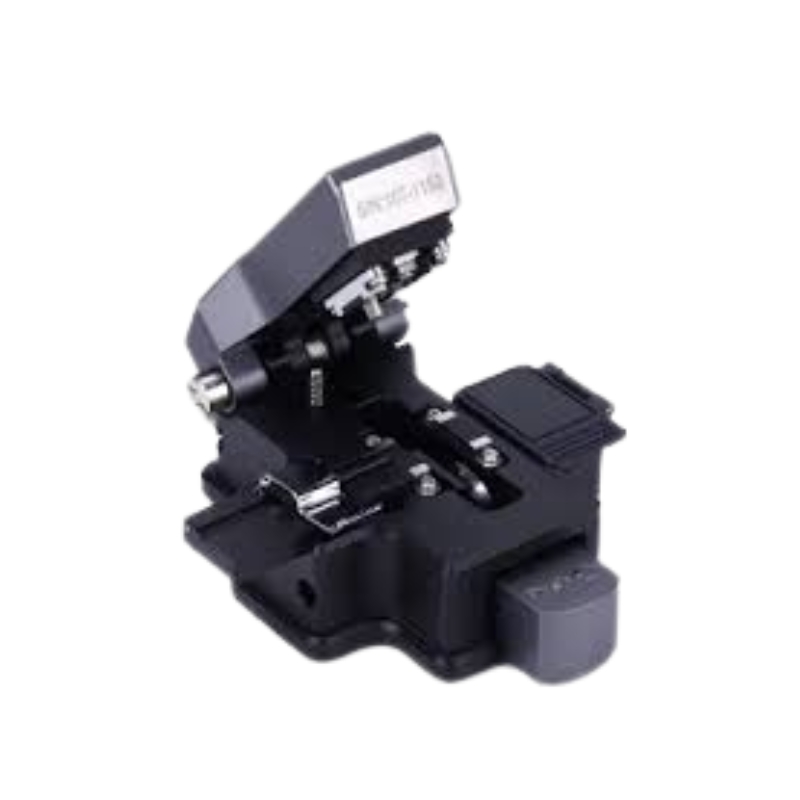

Product Overview of Fiber Cleaver DT-30:

The DT-30 is a revolutionary one-step cleaver launched in 2023. Engineered with a titanium alloy body, it weighs only 138 grams, ensuring an exceptional hand feel. The cleaver also features a convenient one-click rotation function for precise blade positioning.

Fiber Cleaver Specifications

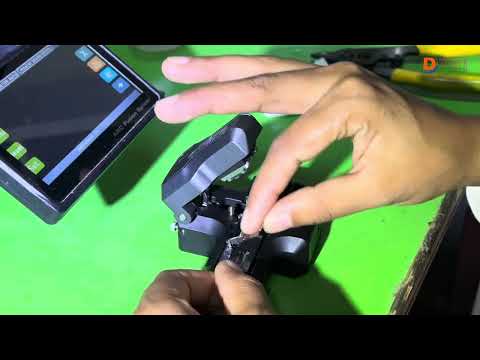

Operations:

• Press the large platen tightly, then turn the cleaver lock to the "on " side ,then lift the platen .
• Open the cover plate of the optical fiber guide groove ,place the optical fiber in the fiber guide groove, and align the boundary line of the coating layer with the measurement scale of the light cutting length .At this point, confirm whether the bare fiber part is straight .Finally, cover the optic fiber guide groove cover plate and clamp the fiber.
• Close the cover and clamp the fiber
• Press the large platen, triggered the switch, then the fiber is automatically cut off .
• Release the large platen, then open the cover of the fiber guider groove while holding the fiber with your finger, and then take the fiber out. Then the blade will return to its initial state and ready for the next cleave
• When storing the fiber cleaver, first press the large platen, turn the cleaver lock to the OFF position  and then put the fiber cleaver in the box.
