QSFP+ 40G SR4 MPO MMF
100M OM3
Brand:
D-TECH
Variant Specifications
Warranty:
Weight:
Country of Origin:
More Details:
Import Lead Time:
Package:
1% OFF
Rs 6,096.38
List: Rs 6,169.50
40G QSFP+ SR4 Optical Transceiver – QSFP-SR4-40G
The 40G QSFP+ SR4 Transceiver is a high-speed multimode optical module designed for short-distance 40G Ethernet connectivity in data centers, enterprise networks, cloud infrastructure, and high-performance computing environments.
It uses 850nm VCSEL technology with an MPO-12 optical interface to deliver stable 40G transmission up to 150m on OM4 and 100m on OM3 multimode fiber.
| Category | Specification |
|---|---|
| Model | QSFP-SR4-40G |
| Brand / Vendor | FS |
| Product Type | 40G QSFP+ Optical Transceiver |
| Form Factor | QSFP+ |
| Data Rate | 41.25 Gbps |
| Wavelength | 850 nm |
| Transmission Distance | 150m on OM4 MMF / 100m on OM3 MMF |
| Connector Type | MPO-12 Male |
| Fiber Type | Multimode Fiber (MMF) |
| Core Size | 50 μm |
| Transmitter Type | VCSEL Laser |
| Receiver Type | PIN Photodiode |
| Transmit Power | –7.1 to +1.9 dBm |
| Receiver Sensitivity | ≤ –5.4 dBm |
| Receiver Overload | ≥ +2.4 dBm |
| Extinction Ratio | > 3 dB |
| Modulation Format | NRZ |
| Digital Diagnostics | Supported (DOM / DDM) |
| Forward Error Correction | Supported (Host-based) |
| Modal Bandwidth | OM3: 2000 MHz·km / OM4: 4700 MHz·km |
| Power Consumption | < 1.5W |
| Operating Temperature | 0°C to +70°C |
| Compliance | IEEE 802.3 40GBASE-SR4, SFF-8436 |
Key Features
- Supports 40G high-speed optical transmission
- QSFP+ hot-pluggable form factor
- 850nm VCSEL laser technology
- MPO-12 interface for high-density cabling
- Supports OM3 and OM4 multimode fiber
- Low power consumption under 1.5W
- DOM / DDM monitoring support
- Suitable for data center and enterprise backbone networks
Applications
- 40G Ethernet Networks
- Data Center Interconnect
- Cloud Computing Infrastructure
- Enterprise Backbone Networks
- High Performance Computing (HPC)
- Switch-to-Switch Connectivity
Note: Use OM3 or OM4 MPO fiber patch cords with correct MPO polarity for stable 40G SR4 optical transmission.
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.
No videos for this product yet
Once videos are added, you’ll see them here as a gallery.
Related Products
.jpg)
DWDM MUX AND DEMUX (Red21-28) (Blue 51-58) 1U RACK 8CH WITH 2 LGX BOX BIDI SINGLE FIBER
Rs 77,760
DB Box Light
Contact for price
XGSPON OLT - HSGQ
Rs 124,726
Rs 123,247
D-TECH SFP 1.25G BIDI Tx1490/Rx1310nm DDM
Rs 2,624
Rs 2,604
SFP 1.25G 1310nm Dual
Rs 2,565
Rs 2,546

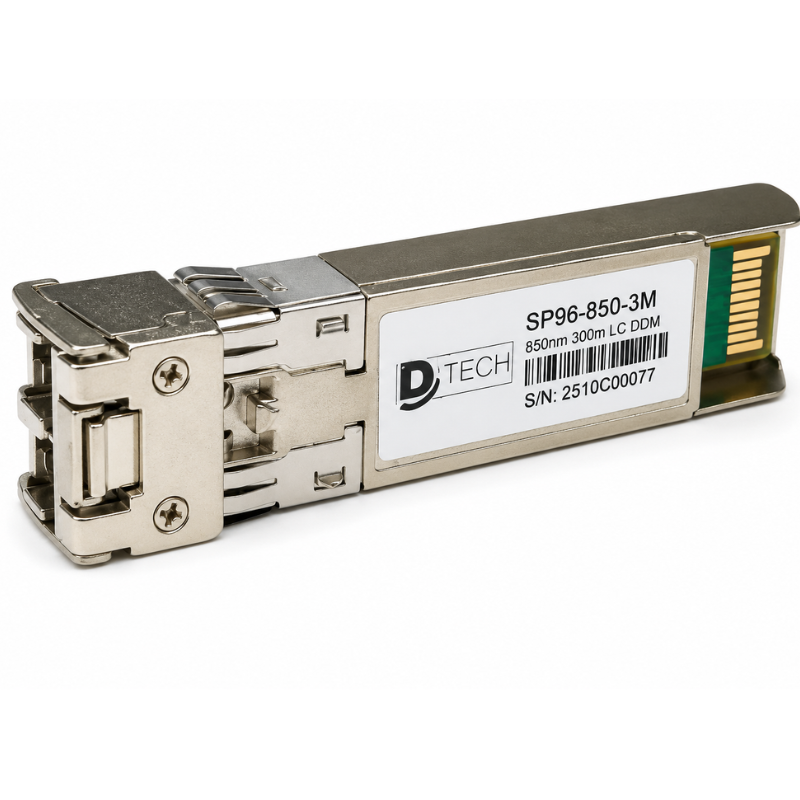

Multimode SFP 10G SR 850nm
