D-TECH Fusion Splicer SM

Product Overview

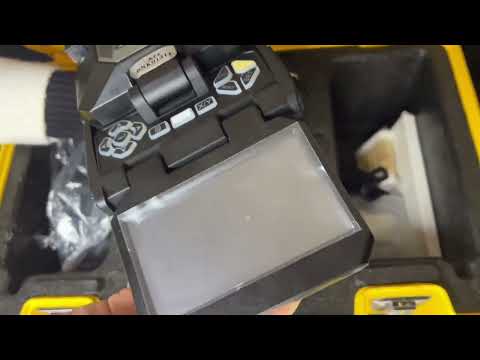

The D-TECH Fusion Splicer SM K95 is a compact and lightweight 6-motor core-to-core alignment machine designed for high-precision fiber splicing. Built with a durable metal frame and ceramic V-grooves, it ensures stability and accuracy in every splice. Powered by an 11.1V 6800mAh pluggable battery, it is ideal for demanding fieldwork. The device also supports optional IoT, GPS, VFL, and OPM modules for extended functionality.

Key Features

• Fast Performance: 7s splicing, 15s heating time

• High Precision: 300× magnification, 0.02dB typical splice loss (SMF)

• Versatile Operation: 300 splice modes, supports G651–G657 fibers, pigtails, and drop cables

• Rugged & Durable: Water-, dust-, and shock-resistant; 5000+ electrode discharges

• Portable Design: Weighs just 2.1kg (with battery) with a 4.3″ touchscreen

Technical Specifications

• Alignment: 6-motor core-to-core

• Fiber Compatibility: 80–150μm cladding, 100–3000μm coating

• Battery Life: Up to 400 splice-and-heat cycles per charge

• Operating Environment: -10°C to 50°C, 0–95% RH

Standard Package Includes

• Fusion splicer

• High-precision cleaver

• Fiber strippers

• Electrodes

• Power adapter

• Carrying case

Optional Accessories

• GPS module

• OPM/VFL module

• Spare battery

• USB drive
