D-TECH XFP 10G BIDI Tx1270/Rx 1330nm DDM
20km
Brand:
D-TECH
Variant Specifications
Compatible:
Warranty:
Weight:
Country of Origin:
Import Lead Time:
Package:
1% OFF
Rs 9,723.89
List: Rs 9,796.46
10G XFP BIDI Optical Transceiver Module
The 10G XFP BIDI Optical Transceiver is a high-performance 10Gbps optical module designed for long-distance fiber communication over single-mode fiber (SMF). It supports bi-directional transmission using a single fiber with different Tx/Rx wavelengths, helping reduce fiber usage and deployment cost.
These XFP transceivers are suitable for 10G Ethernet, telecom networks, ISP backbone links, data centers, DWDM systems, and fiber channel applications. The module supports hot-pluggable operation, built-in digital diagnostics, low power consumption, and excellent EMI performance.
Available Models
| Model | TX Wavelength | RX Wavelength | Distance |
|---|---|---|---|
| 10km | 1270nm | 1330nm | 10KM |
| 20 | 1330nm | 1270nm | 20KM |
Key Features
- Supports 9.95Gb/s to 10.5Gb/s data rates
- Single fiber bi-directional transmission
- 20KM transmission over 9/125µm single-mode fiber
- 1270nm / 1330nm DFB laser options
- PIN photo detector receiver
- Hot-pluggable XFP form factor
- Simplex LC optical interface
- Built-in Digital Diagnostic Monitoring (DDM)
- Low power consumption < 2.5W
- All-metal housing for better EMI protection
- RoHS6 compliant (Lead-Free)
- No external reference clock required
Applications
- 10GBASE-LR / LW Ethernet
- 10G Fiber Channel Networks
- ISP Backbone Networks
- Telecom Optical Transmission
- Data Center Connectivity
- DWDM Fiber Systems
Standards Compliance
- Compliant with XFP MSA Rev.4.5
- Compatible with IEEE 802.3ae 10G Ethernet
- Supports 10G Fibre Channel Standards
General Specifications
| Parameter | Specification |
|---|---|
| Form Factor | XFP |
| Data Rate | 9.95Gbps ~ 10.5Gbps |
| Fiber Type | 9/125µm Single Mode Fiber (SMF) |
| Connector Type | Simplex LC |
| Maximum Distance | 20KM |
| Operating Temperature | -5°C to +70°C |
| Power Consumption | < 2.5W |
| Diagnostic Function | Digital Diagnostic Monitoring (DDM) |
Optical Parameters
| Parameter | Min | Typical | Max | Unit |
|---|---|---|---|---|
| Transmitter Wavelength | 1260nm / 1320nm | 1270nm / 1330nm | 1280nm / 1340nm | nm |
| Spectral Width | - | - | 1 | nm |
| Average Optical Power | -3 | - | 3 | dBm |
| Extinction Ratio | 3.5 | - | - | dB |
| Receiver Sensitivity | -14.4 | - | -3 | dBm |
| LOS Assert | -25 | - | - | dBm |
| LOS Deassert | - | - | -16 | dBm |
| Receiver Overload | - | - | -3 | dBm |
Note: Select the correct paired wavelength model (1270/1330nm) when deploying BIDI optical links over single fiber.
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.
No videos for this product yet
Once videos are added, you’ll see them here as a gallery.
Related Products
POE Media Converter
Rs 6,600
Rs 6,500
100G Data Center Switch
Contact for price
RG-EW300R
Rs 3,727
Rs 3,584
D-TECH Fiber Media converter SFP Single-Mode
Rs 13,473

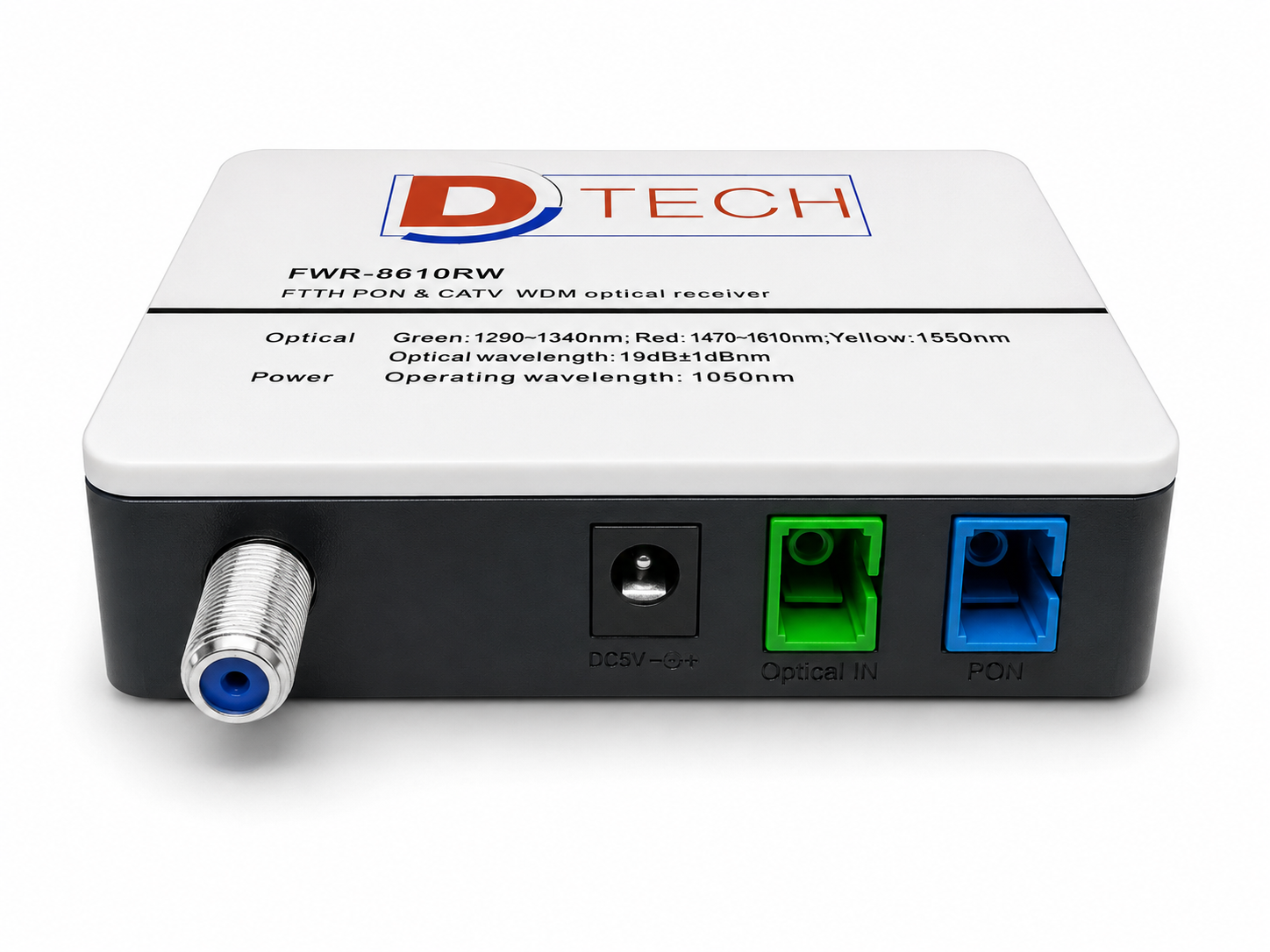

FTTH PON & CATV WDM OPTICAL RECEIVER
