Fiber Optic Adapter
SC UPC to SC UPC 0db
Brand:
D-TECH
Variant Specifications
Warranty:
Size:
Weight:
Country of Origin:
Delivery Time (if import required):

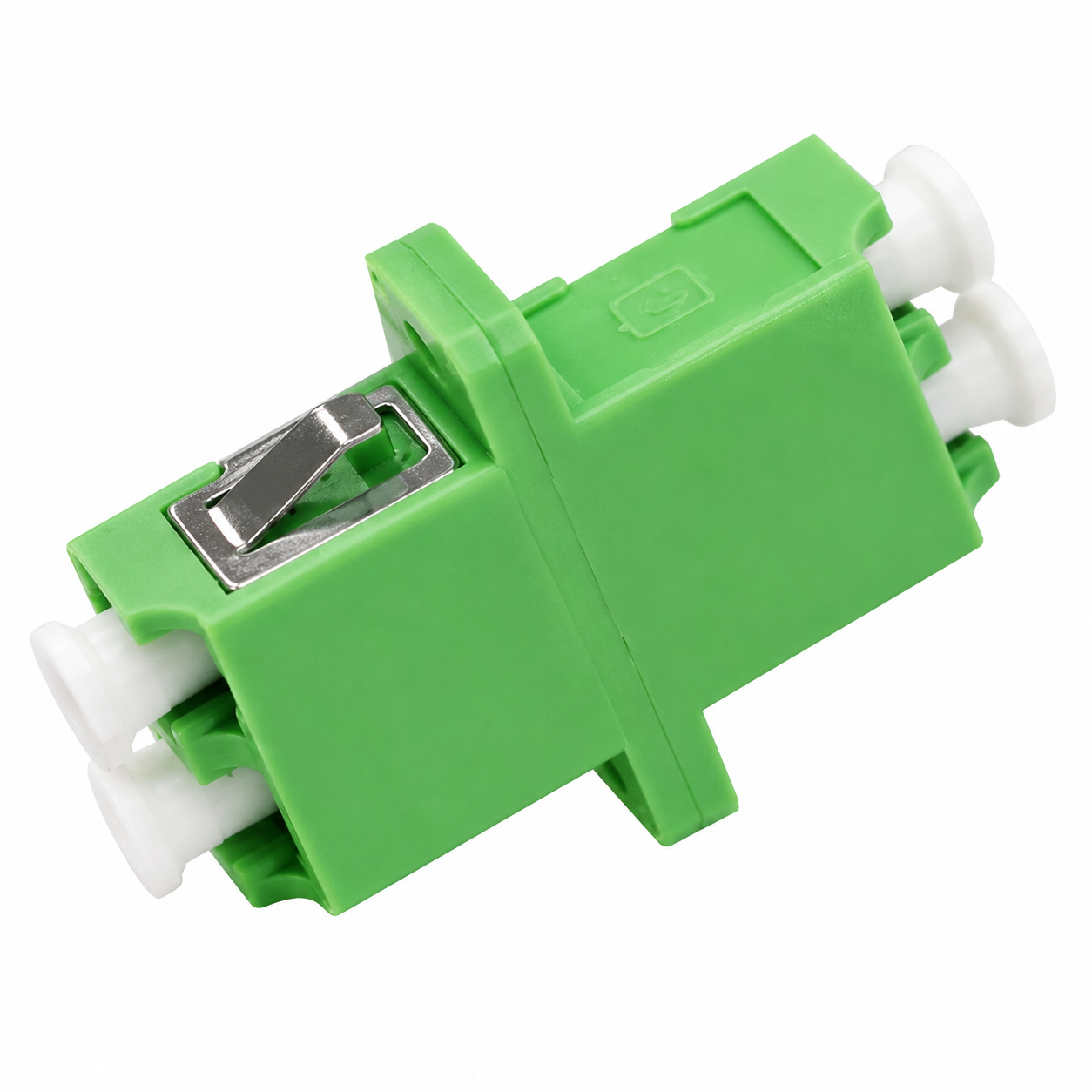

LC to LC APC Dx 0db

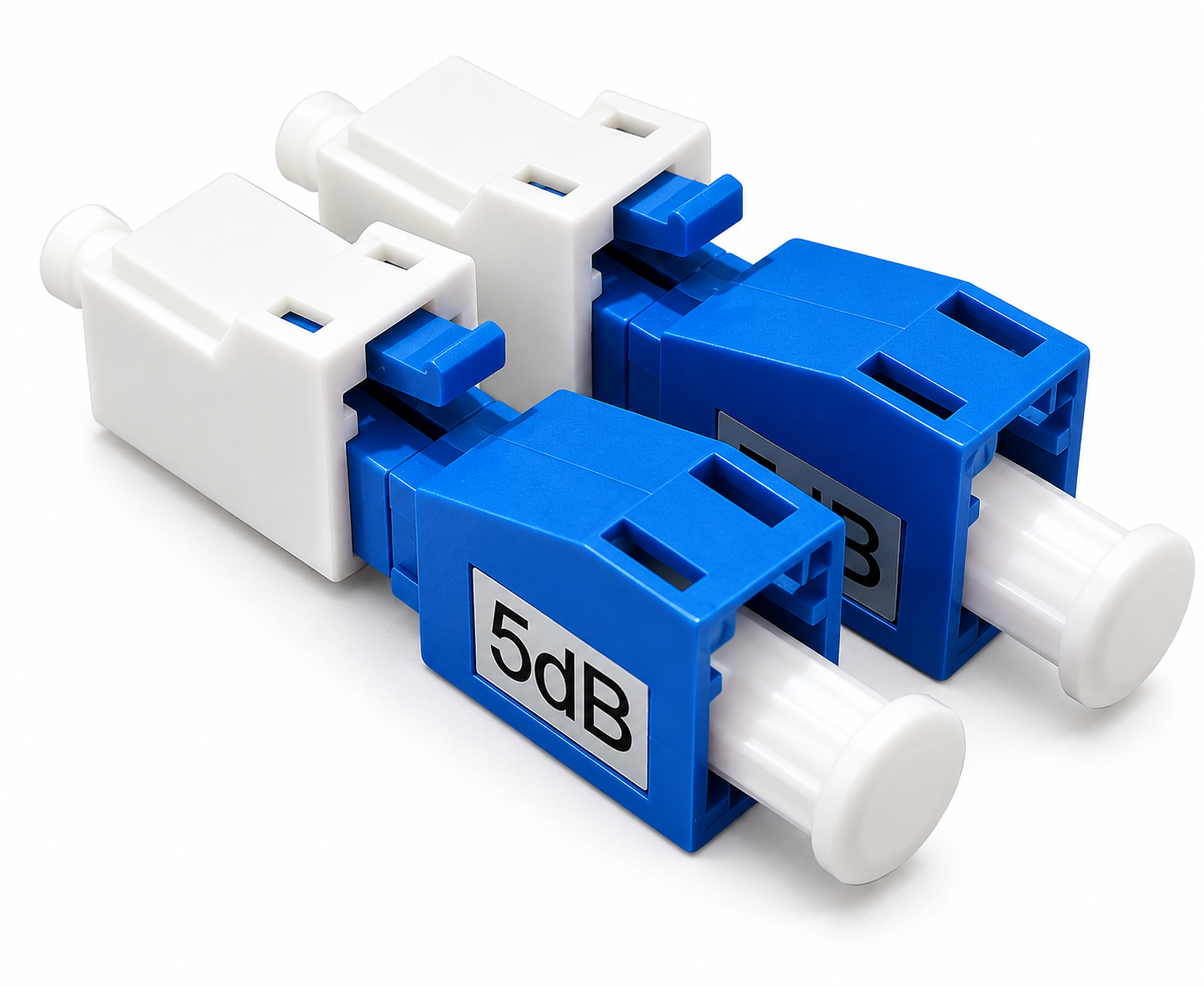

LC UPC to LC UPC 5db

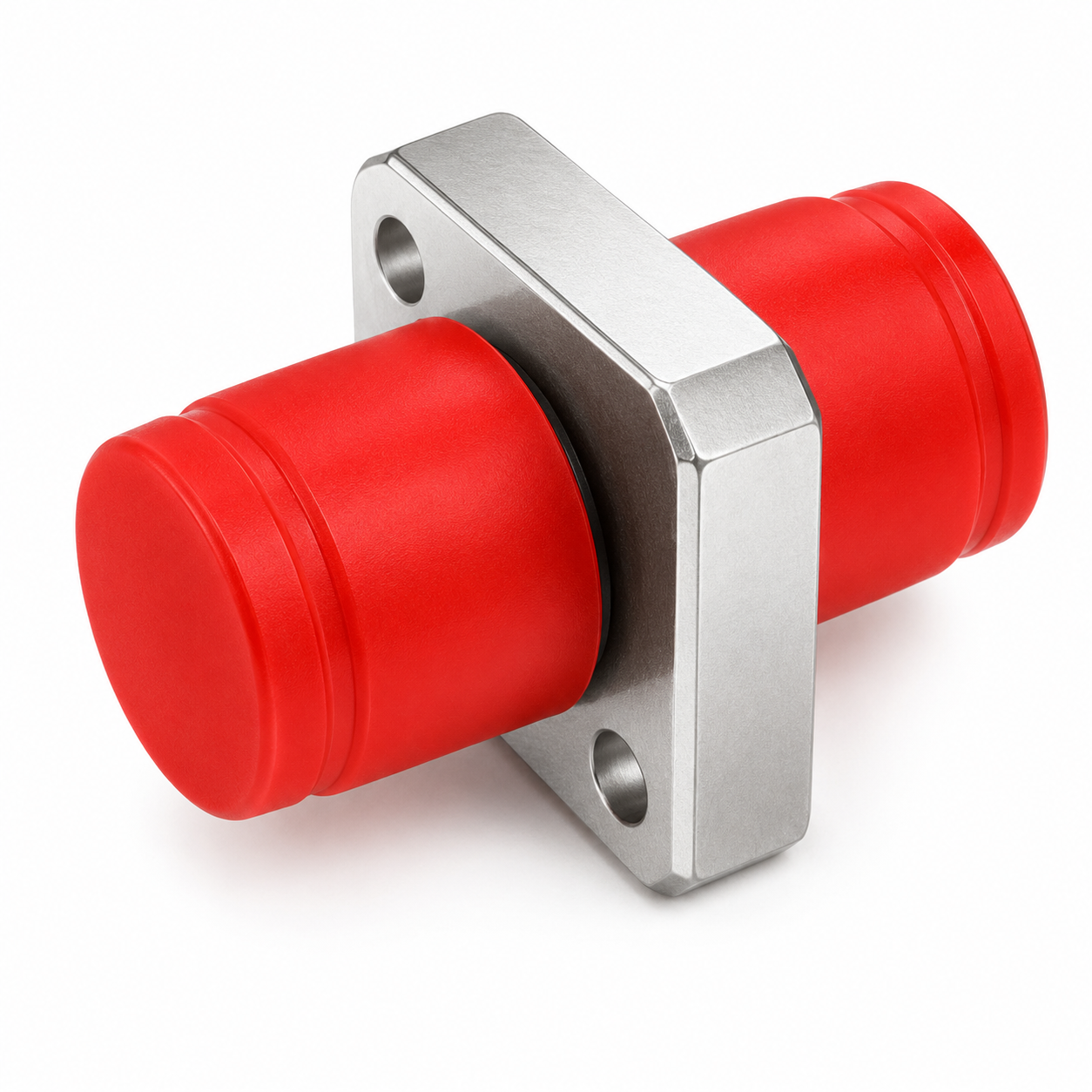

FC UPC to FC UPC 0db

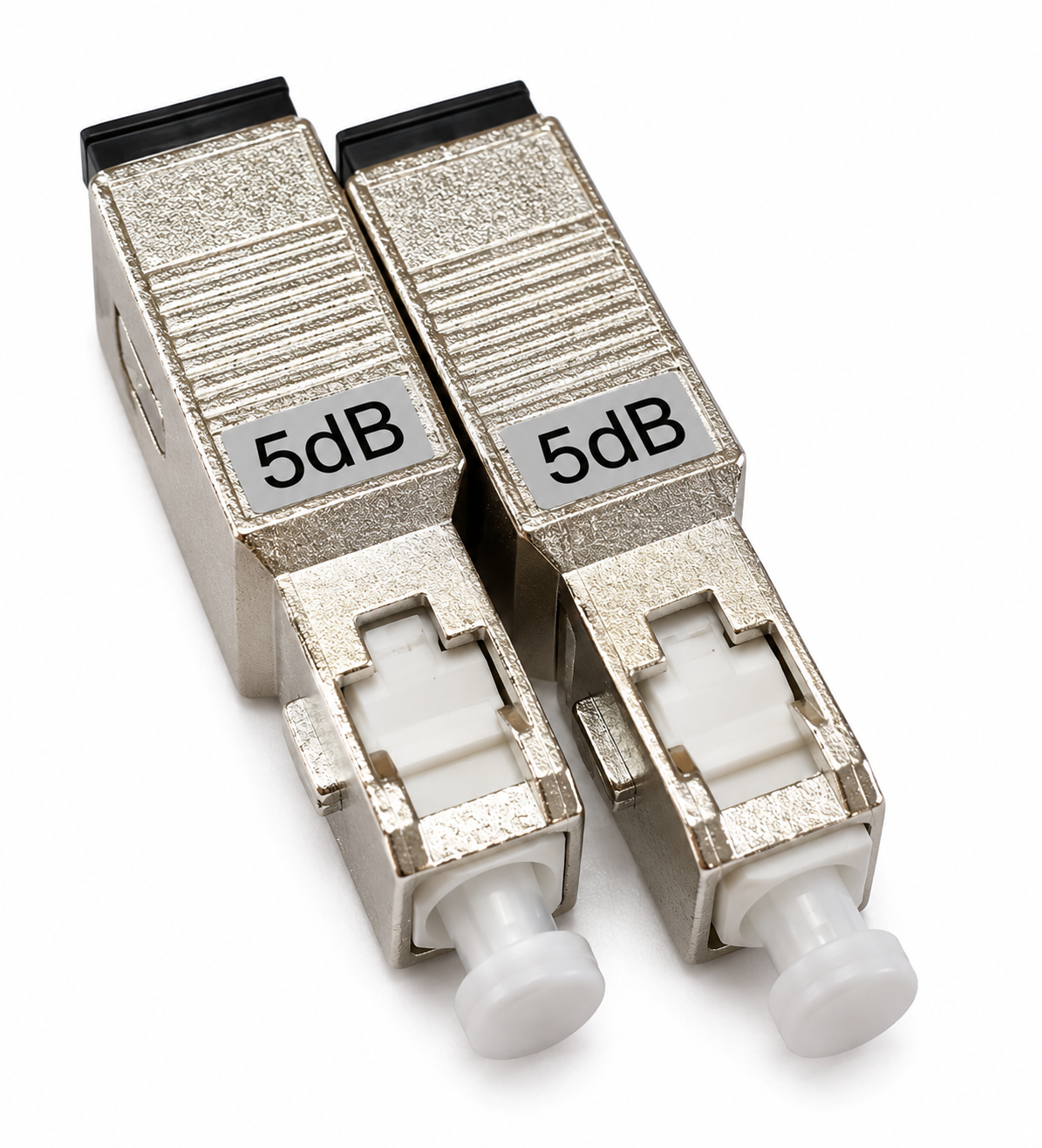

SC UPC to SC UPC 5db

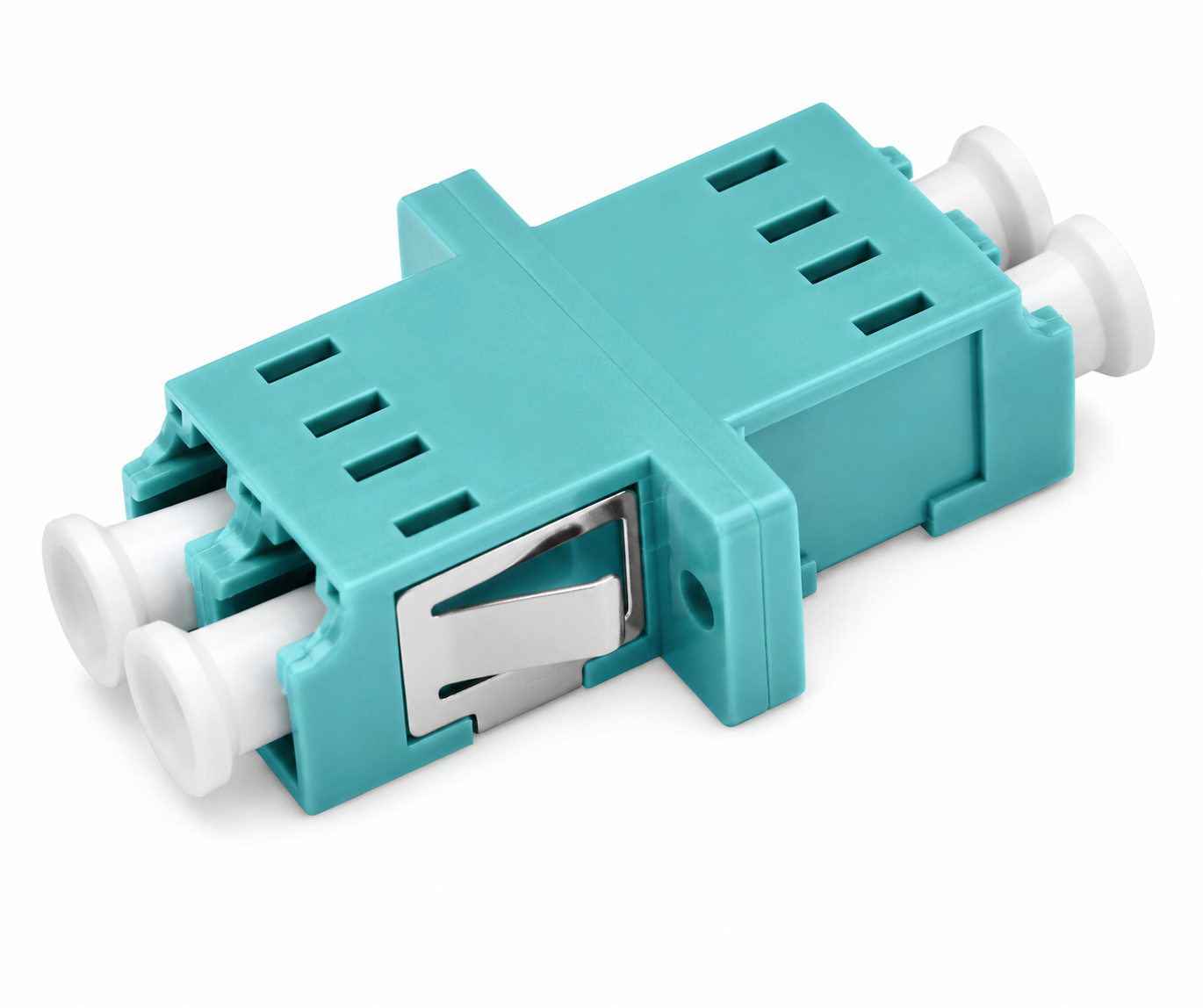

LC to LC Dx OM4
LC to LC UPC Dx 0db

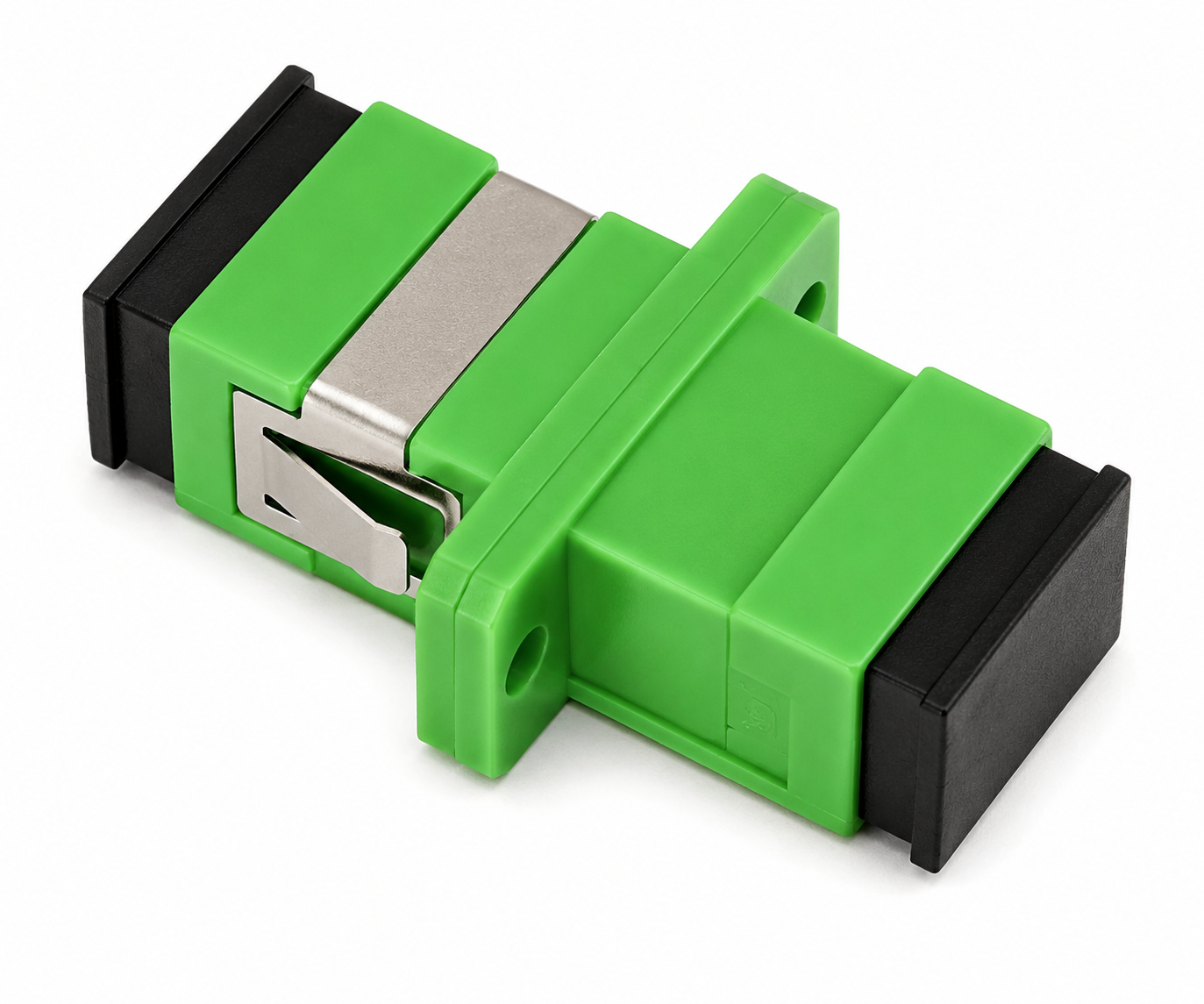

SC to SC APC 0db

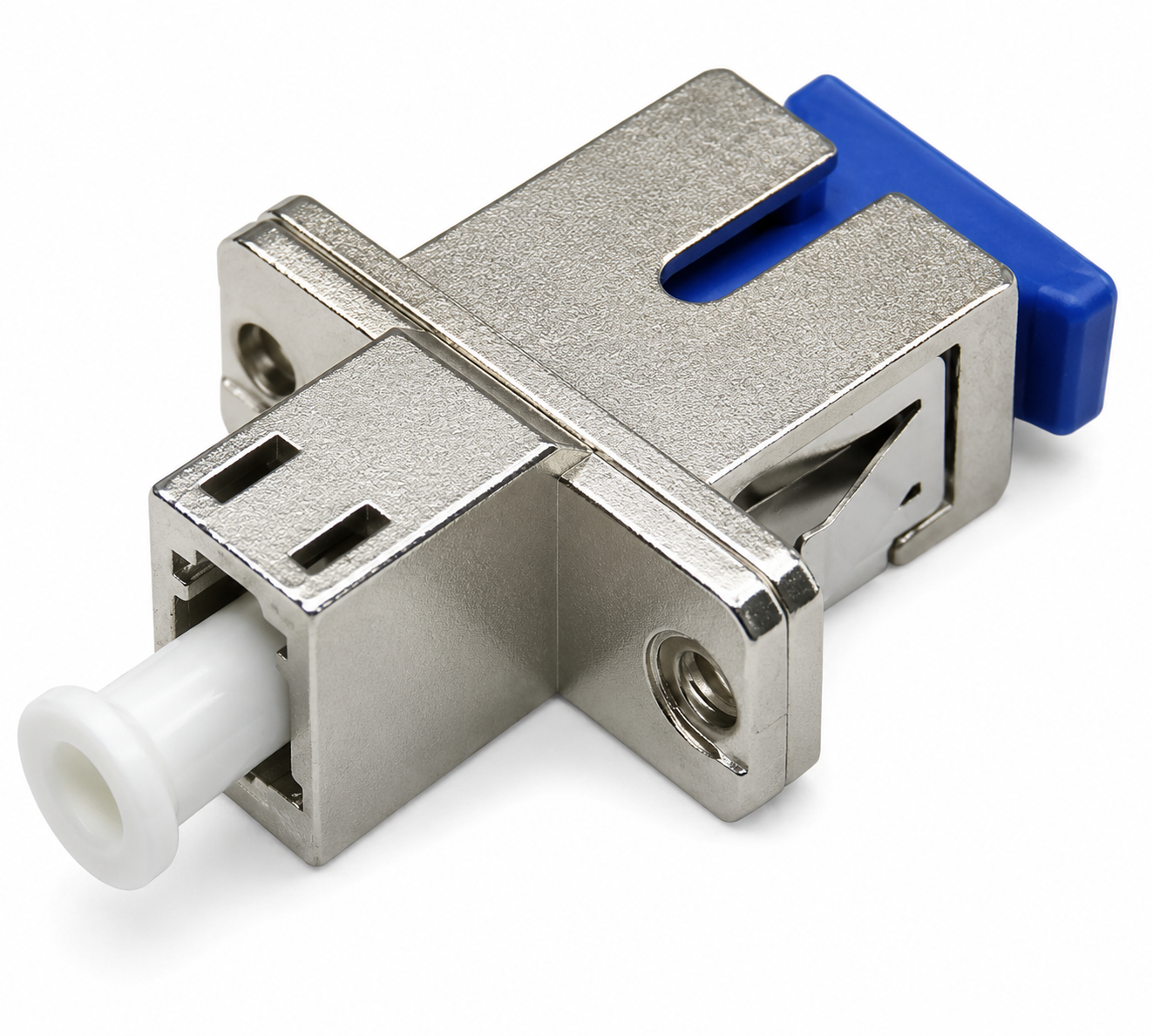

SC UPC to LC UPC 0db
1% OFF
Rs 20.37
List: Rs 20.52

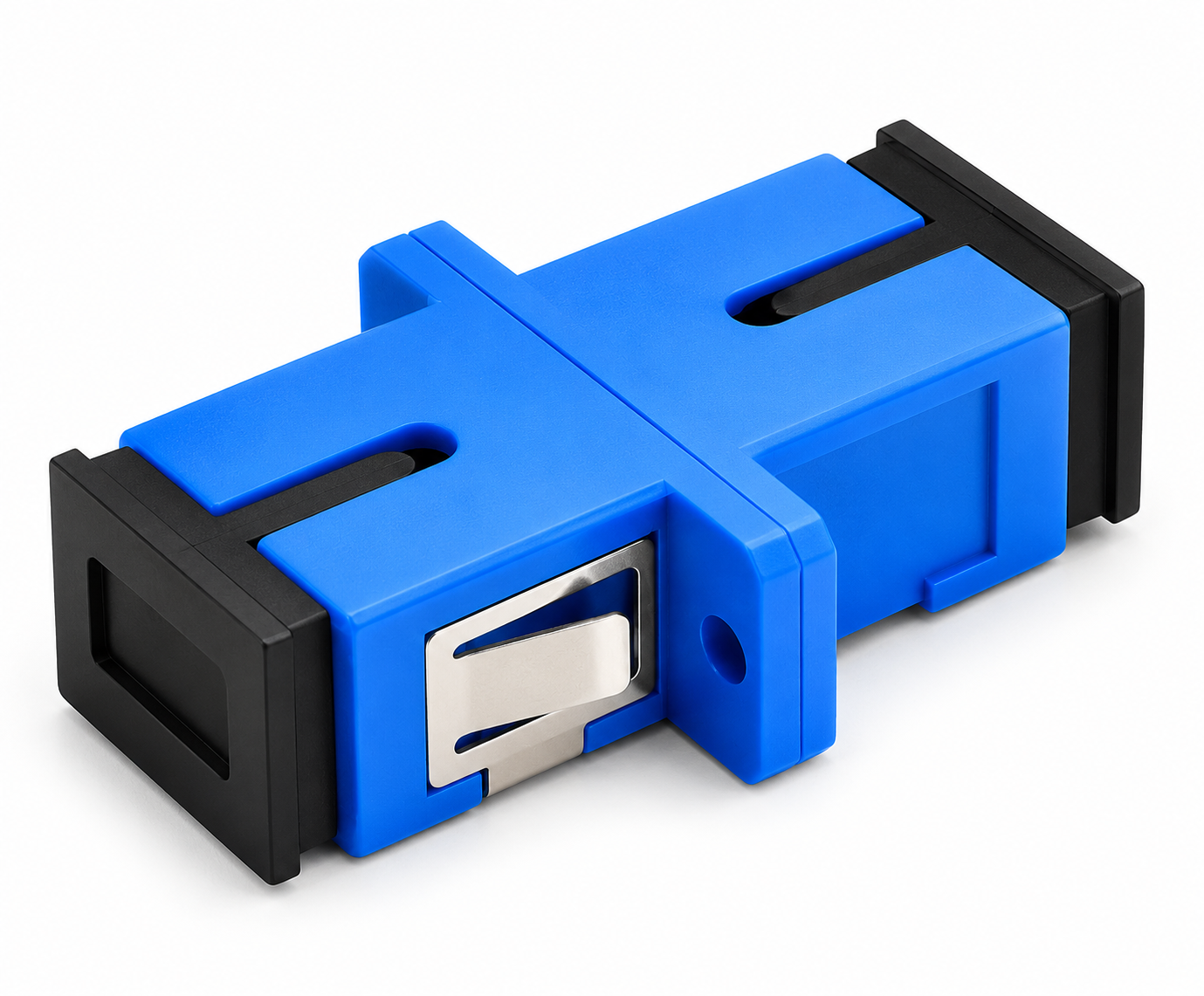

SC UPC to SC UPC 0dB Fiber Adapter
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Fiber Optical Adapter (Coupler) |
| Connector Type | SC UPC to SC UPC |
| Polish Type | UPC (Ultra Physical Contact) |
| Attenuation Value | 0 dB (Pass-through) |
| Fiber Type | Single Mode / Multimode |
| Insertion Loss | ≤ 0.2 dB |
| Return Loss | ≥ 50 dB (SM) / ≥ 35 dB (MM) |
| Sleeve Material | Ceramic |
| Housing Material | PBT + Glass Fiber |
| Color | Beige (SM) / Blue (MM) |
| Mounting Type | Flange / Panel Mount |
| Durability | ≥ 500 Mating Cycles |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Compliance Standards | IEC, RoHS |
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.
Product Videos
Watch demos, overviews and installation guides related to this product.
Related Products
MPO Connector
Rs 108
Rs 107
Patch Panel ODF 48 Cores
Rs 14,000
Rs 13,000
Fiber Optic Enclosure Vertical
Contact for price
4CH WDM ComboMux-GXVO
Contact for price
DWDM MUX AND DEMUX (Red 21-32) & (Blue 42-45/49-56)1U RACK WITH 1 LGX BOX 12CH BIDI SINGLE FIBER (SIDE B)
Rs 78,408
Rs 75,557
-2.jpg)
OCM (Optical Channel Monitoring Card)
Contact for price
.jpg)
MUX96 (96-Channel Passive MUX DEMUX)
Contact for price
Patch Panel ODF 12 Cores
Rs 6,737
Rs 6,657
DWDM MUX AND DEMUX (Red 21-32) & (Blue 42-45/49-56)1U RACK WITH 1 LGX BOX 12CH BIDI SINGLE FIBER (SIDE A )
Rs 78,408
Rs 75,557

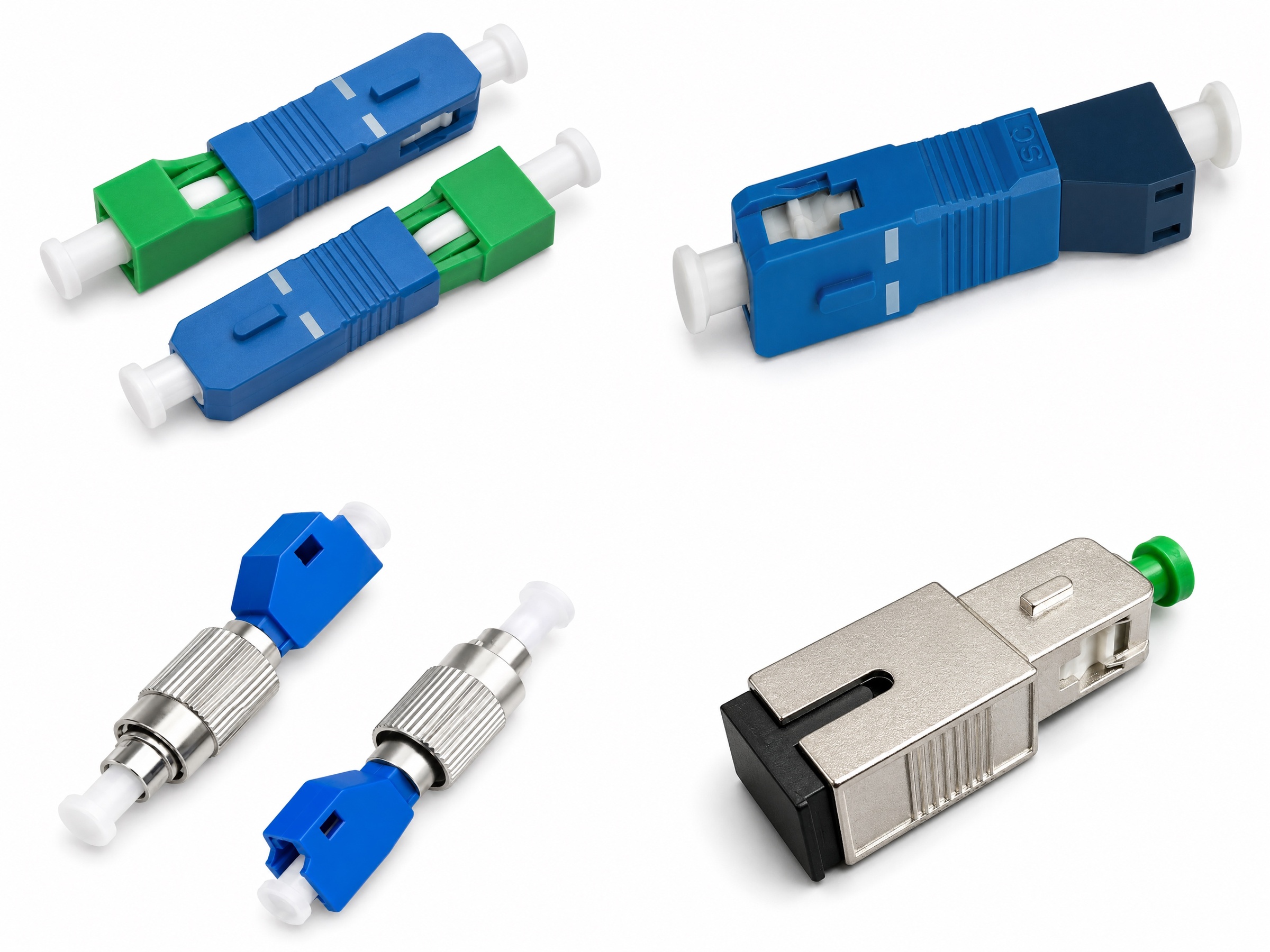

Hybrid OFC Adapter
