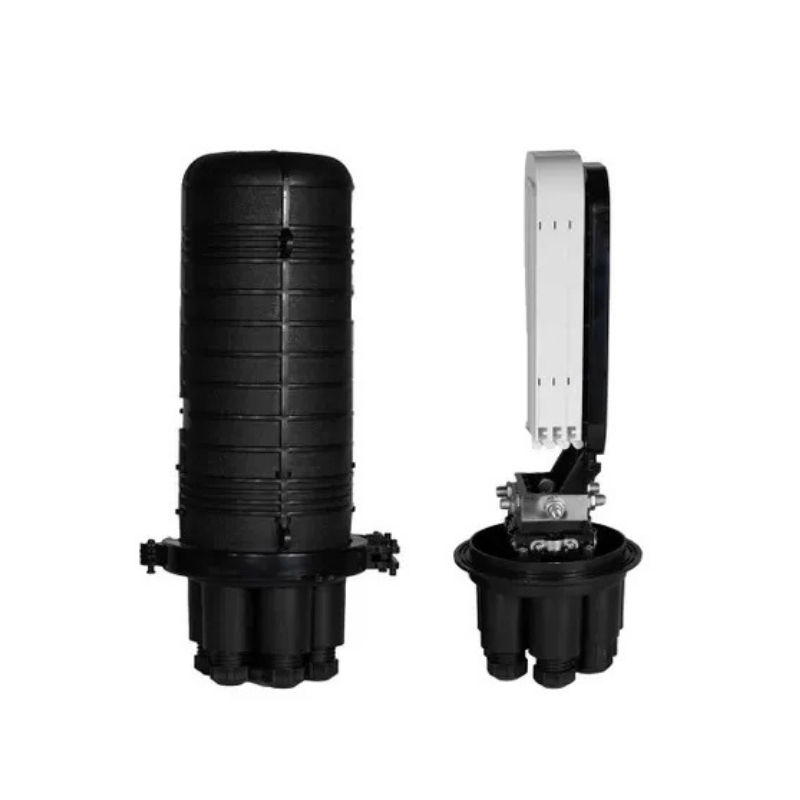

Fiber Optic Splice Closure 72 Core
The GJS-901-2 Fiber Optic Splice Closure (FOSC) is designed for splicing, distributing, and protecting outdoor optical fiber cables. It supports both direct and branching connections and is suitable for aerial, duct, manhole, and underground installations.
Key Features
- IP68 protection rating (dustproof & waterproof)
- Supports aerial and wall mounting
- Operating temperature: -40°C to +65°C
- Compact design with large fiber capacity
- High-quality engineering plastic with anti-aging and anti-corrosion properties
- Reliable mechanical structure for harsh environments
- Booklet-style splice trays with minimum bending radius ≥ 40 mm
- Individual fiber and cable management for easy maintenance
Dimensions & Capacity
| Parameter | Value |
|---|---|
| Dimensions (H × D) | 299 mm × 178 mm |
| Weight | 1550 g – 1740 g |
| Ports | 4 Cable Inlet / Outlet Ports |
| Cable Diameter | Φ8 mm ~ Φ20 mm (multi-size supported) |
| Capacity | 6 – 24 cores (bunchy fibers) |
Main Components
| Component | Qty | Function | Remarks |
|---|---|---|---|
| FOSC Cover | 1 | Protects fiber splices | 226 × 132 mm |
| Splice Tray (FOST) | Max. 4 | Holds fibers & sleeves | 12 cores per tray |
| Fiber Holding Tray | 1 | Fiber organization | — |
| Base | 1 Set | Structure fixing | — |
| Seal Fitting | 1 | Sealing protection | — |
| Pressure Valve | 1 | Pressure testing | Optional |
| Earthing Device | 1 | Grounding | Optional |
Accessories & Tools
| Item | Qty | Usage |
|---|---|---|
| Heat Shrink Sleeve | As required | Protect fiber splice |
| Nylon Tie | As required | Fiber fixing |
| Desiccant | 1 | Moisture protection |
| Special Wrench | 1 | Tightening structure |
| Metal Hoop | 1 Set | Pole / wall mounting |
Shipping Information
| Package | Size | Capacity | Weight |
|---|---|---|---|
| Inner Box | 170 × 155 × 300 mm | 1 pc | 1.65 – 1.85 kg |
| Outer Carton | 490 × 370 × 625 mm | 12 pcs | 19.8 – 22.2 kg |
