Outdoor CCTV Solution with PON Networking
Reliable fiber-based CCTV networking solution for long-distance outdoor surveillance in Nepal.

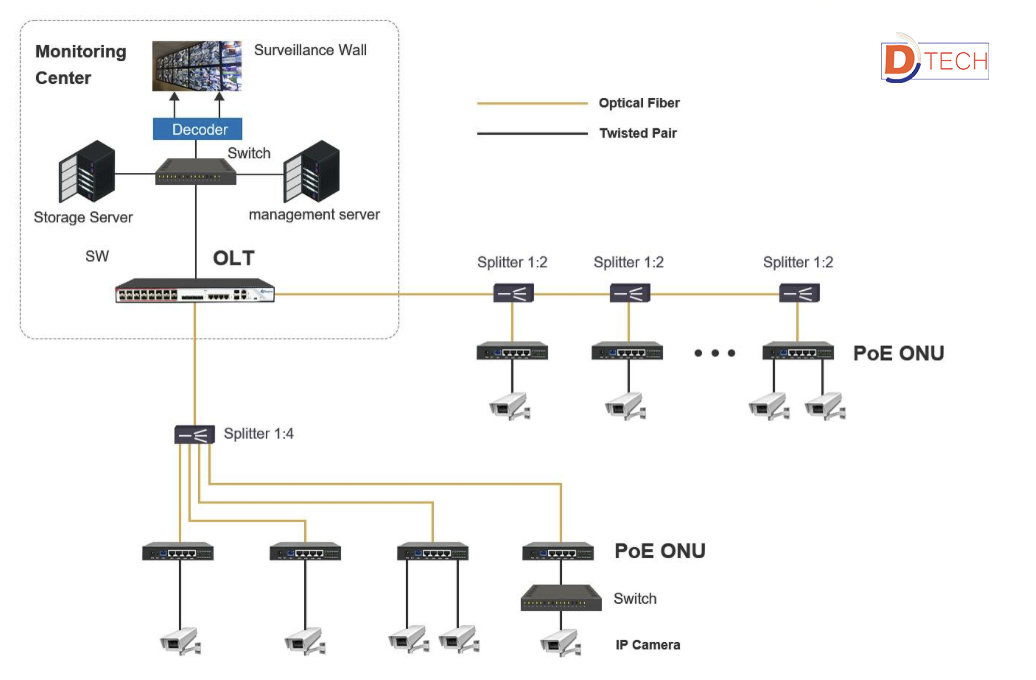

Outdoor CCTV deployment over long distances requires a stable, scalable, and cost-effective network. Using PON (Passive Optical Network) technology, you can build a reliable surveillance system with fiber backbone, suitable for urban areas, highways, campuses, industries, and rural locations across Nepal.
What Equipment is Required for PON-Based Outdoor CCTV?
| No. | Equipment | Details / Variants | Purpose |
|---|---|---|---|
| 1 | GPON OLT | 1 Port, 2 Port, 4 Port, 8 Port, 16 Port | Central device installed at control room or main office. |
| 2 | PON SFP Module | Class C+, Class C++ | Transmits and receives optical signal from OLT. |
| 3 | ODF | 12 Port, 24 Port, 48 Port, SC/UPC | Fiber termination, patching, and rack cable management. |
| 4 | Fiber Optic Cable | 6 Core, 12 Core, 24 Core; Figure-8, FRP, Steel Armored | Main backbone for long-distance CCTV connectivity. |
| 5 | DB Box with Splitter | 1×4, 1×8; SC/UPC or SC/APC | Splits optical signal to multiple CCTV locations. |
| 6 | Fiber Tiffin Box / Enclosure | Outdoor fiber joint protection box | Protects splicing joints from dust, water, and weather. |
| 7 | XPON ONU / MDU with PoE | PoE ports, AC or DC power input, multiple LAN ports | Converts fiber to Ethernet and powers IP CCTV cameras. |
| 8 | Patch Cord / Drop Cable | Indoor: Patch Cord | Outdoor: Drop Cable | Used for device-to-device fiber connection. |
| 9 | Tension Clamp | Different sizes as per fiber cable diameter | Supports aerial fiber cable installation. |
| 10 | Splicing & Installation Work | Splicing, routing, fixing, OTDR and power meter testing | Ensures stable performance and low-loss fiber connection. |
Why Choose PON Networking for Outdoor CCTV?
PON networking supports long-distance transmission, stable fiber connectivity, centralized management, and easy scalability, making it ideal for CCTV deployment in Nepal.
Suitable Applications in Nepal
- Smart city CCTV surveillance
- Highway and traffic monitoring
- School and campus security
- Industrial and commercial projects
- ISP-based CCTV networking
- Rural and long-distance monitoring
Contact D-TECH, Nepal
For complete Outdoor CCTV Solution with PON Networking, equipment supply, and technical support:
Website: www.dtechtrading.com.np
Locations: Lalitpur | Itahari | Butwal
WhatsApp: 9851248419
