HDMI+KVM Fiber Extender USER MANUAL
HDMI Extender over Fiber with
USB and IR
I. Introduction
The extender provides extension of HDMI signals long distances
over a single Fiber, it supports high resolution up to 1080P and
4K@30Hz(optional model function), KVM and IR signal transmission, embedded
audio input and output (optional model function). The extender can use for a
wide range of applications requiring long distance transmission of high
resolution with high quality by its good stability and powerful security.
II. Features:
1. Transmits HDMI video and audio signals up to 20KM over a single
Fiber
2. Support video resolution up to 1920*1080P@60Hz,
4K@30Hz(optional model function)
3. Support IR signal transmission(20KHz~60KHz)
4. Support keyboard and mouse
5. Support one-way embedded independent audio input and output
(optional model function)
6. Support over TCP/IP, support one TX to more RX by optical fiber
splitter or optical fiber switch , distribution function is realized
7. Compliance with HDMI 1.3 and HDCP 1.2 standard
8. High compatibility, can auto-match source and display device
9. Built-in automatic adjustment system, make the image smooth,
clear and stable
10. Built-in ESD protection system
11. Simple to install, plug and play

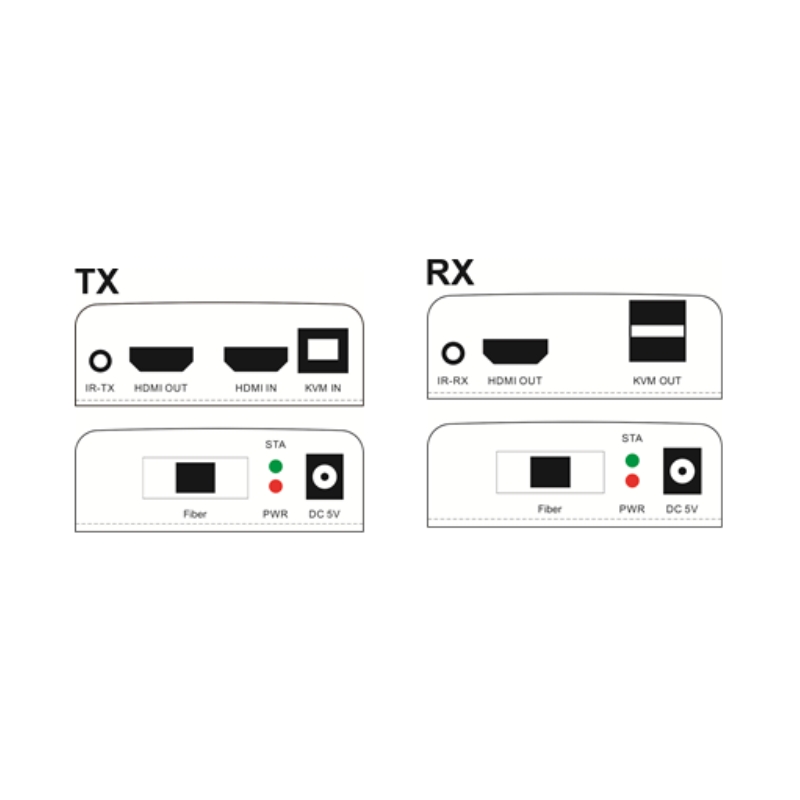

III. Product interface
pictures
.jpg)
|
Port name
|
Description
|
|
HDMI IN/OUT
|
HDMI signal input/output
|
|
KVM IN/OUT
|
USB signal input/output
|
|
Fiber
|
connect Optical Fiber (SC/SF)
|
|
IR TX/RX
|
IR signal input/output
|
|
Audio
|
3.5mm audio input/output
|
|
DC/5V
|
Power adapter socket
|
|
LED indicator
|
Description
|
|
PWR
|
unit power indicator
|
|
STA
|
HDMI signal indicator
|
IV. Specification
|
Description
|
Parameter
|
|
Video
|
Standards
|
HDMI 1.3; HDCP 1.2
|
|
Maximum pixel clock
|
165MHz
|
|
Maximum data rate
|
6.75Gbps
|
|
Resolution
|
1920X1080P@60Hz; 4K@30Hz(optional model function)
|
|
Connector
|
HDMI-A
|
|
Impedance
|
100Ω
|
|
USB
|
Interface
|
PC: Type B USB interface; connect to pc;
K/M: connect USB keyboard and mouse;
|
|
USB Signal
|
HID Signal
|
|
IR
|
Interface
|
3.5mm seat
|
|
Signal direction
|
Unidirectional
|
|
IR frequency
|
20-60kHz
|
|
Audio
|
Interface
|
3.5mm seat
|
|
Signal model
|
Embedded unidirectional stereo
|
|
Fiber
|
Interface
|
SC/FC
|
|
Fiber Model
|
Single mode
|
|
wavelength
|
Single mode 1310nm；1550nm
|
|
bandwidth
|
6.25Gbps
|
|
Transmission distance
|
Default standard 20KM, MAX up to 80KM
|
|
Other
|
Power supply
|
The power adapter: DC 5V/1A
|
|
Power dissipation
|
MAX 3W
|
|
Temperature
|
Operating: -5℃ ~ +70℃
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
Dimension
|
97*73*26mm
|
V. Installation
Process:
1. Connect the provided DC/5V power supplies to the power socket
of the transmitter and the receiver
2. Connect an HDMI cable between the HDMI input port of
transmitter and the HDMI output port of the video source
3. Connect the HDMI output port of receiver to the display device
with HDMI cable, Connect the transmitter Fiber port to the receiver Fiber port
using a single Optical fiber
4. Connect transmitter KVM IN port to PC using mini USB cable
5. Connect USB keyboard and mouse to Receiver KVM OUT port
6. Connect the audio input/output with a 3.5mm audio cable
7. Power on Transmitter and Receiver
VI. Package
1. HDMI transmitter x1 pcs
2. HDMI receiver x1 pcs
3. USB Cable x1 pcs
4. Power adapter x2 pcs
5. IR TX/RX terminal x 1 set (optional)
.jpg)
6. User manual x1 pcs
