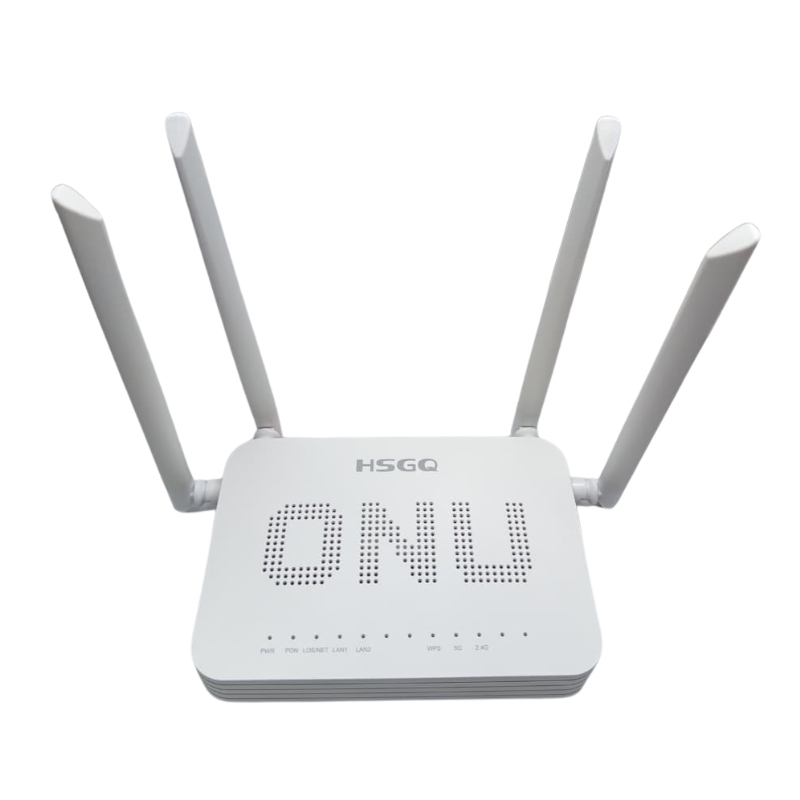

HSGQ-X200DW ONU - UPC-C

HSGQ-X200DW Product Overview

Description: High-performance, versatile device for industrial/commercial use with dual-band Wi-Fi, EPON/GPON compatibility, and advanced security features.

Category	Specifications
Key Features	- Supports bandwidth control, IEEE 802.3ah & ITU-T G.984 standards
	- Wi-Fi 802.11a/b/g/n/ac, 20KM transmission range
	- Data encryption, VLAN, DBA, remote software upgrade, QoS, ACL, NAT
	- PPPoE/DHCP Server, power-off alarm, system breakdown prevention
Wi-Fi Features	- Dual-band 2.4GHz/5GHz (802.11b/g/n/ac)
	- Up to 166Mbps PHY rate, 4x SSID support, WPA2/WEP/802.1x security
	- Hide SSID, auto-channel selection
Interfaces	- 2x 10/100/1000M Ethernet (RJ45)
	- 1x EPON/GPON adaptive port (SC-UPC/APC)
	- 1x RJ11 (POTS) for voice
Indicators	POWER, PON, LOS, LAN, 2.4G/5G Wi-Fi, WPS, NET
Technical Specs
- PON	- GPON: 2.5Gbps down / 1.25Gbps up; EPON: 1.25Gbps symmetric
	- Sensitivity: -7dBm to -28dBm (GPON), -7dBm to -27dBm (EPON)
- Ethernet	Auto-MDI/MDI-X, 100m range, full/half duplex
- Power	12V/1.5A DC, <9W consumption
- Environment	0°C–60°C operating, -40°C–80°C storage, 10%–85% humidity
- Size	162mm (L) x 112mm (W) x 30mm (H)
Management	WEB, TELNET, TR069, OMCI, OAM
Ordering Info	HSGQ-X200DW: 2xGbE, 1x EPON/GPON, 2.4G/5G Wi-Fi

Indicators Detail

No.	Indicator	Status
1	POWER	On: Powered • Off: No power
2	PON	On: Registered • Blinking: Registering • Off: Failed
3	LOS	On: Weak signal • Off: Normal
4	LAN	On: Connected • Blinking: Data transfer • Off: Disconnected
5	2.4G Wi-Fi	On: Enabled • Blinking: Data transfer • Off: Disabled
6	5G Wi-Fi	On: Enabled • Blinking: Data transfer • Off: Disabled
7	WPS	On: Paired • Blinking: Pairing • Off: Inactive
8	NET	On: Internet access • Off: No connection
