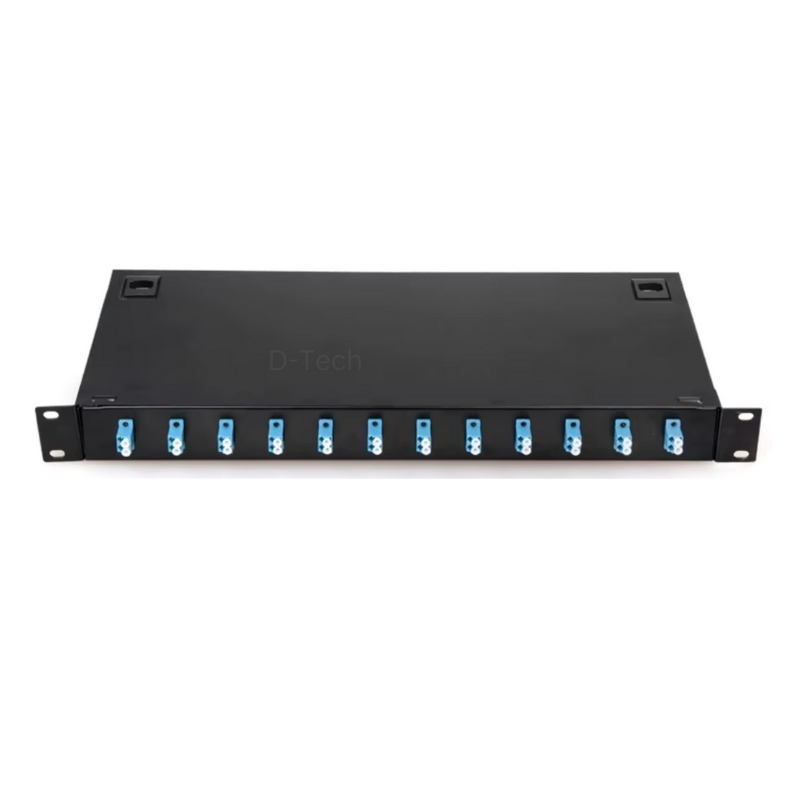

Patch Panel ODF 24 cores
LC UPC - Loaded
Brand:
D-TECH
Variant Specifications
Size:
Weight:
Country of Origin: China
Delivery Time (if import required):
Warranty: 1 Year
Available options
SC APC - Loaded
SC UPC - Loaded
FC UPC - Loaded
1% OFF
Rs 11,046.09
List: Rs 11,178.54
Rack Mount Fiber Patch Panel LC UPC with Loaded Pigtail
General Specifications
| Category | Specification |
|---|---|
| Product Type | Rack Mount Fiber Patch Panel (ODF) |
| Application | Fiber termination, splicing & distribution (ISP, FTTH, Data Center) |
| Mounting Type | 19" Rack / Cabinet Mount |
| Rack Height | 1U |
| Width | 19 inch standard |
| Depth | 300 mm |
| Max Capacity | 24 Cores |
| Adapter Type | LC UPC |
| Material | High-quality steel (electrostatic powder coating) |
| Material Thickness | 1.2 mm |
Structure & Design
| Parameter | Details |
|---|---|
| Structure | Rotating tray design for easy maintenance |
| Splice Tray | Included (fiber splicing & storage) |
| Cable Entry | Rear cable entry |
| Patch Cord Output | Front / Right side access |
| Access Type | Full front access |
| Stability | Fixed rack-mounted, anti-movement design |
| Installation | Easy installation in compact rack spaces |
| Panel Type | Adapter panel based (modular installation) |
| Protection | Safe enclosure for adapters, pigtails & fibers |
| Design | Customizable available |
Environmental Conditions
| Parameter | Value |
|---|---|
| Operating Temperature | -5°C to +60°C |
| Humidity | ≤ 90% at 30°C |
| Air Pressure | 70 kPa – 106 kPa |
