D-TECH SFP 10G BIDI Tx1270/Rx 1330nm DDM
80KM LC
Brand:
D-TECH
Variant Specifications
Weight:
More Details:
Import Lead Time:
Package:
Warranty: 1 Year
Country of Origin: China
40km LC
1% OFF
Rs 18,379.44
List: Rs 18,516.60
10G Optical Transceiver 80km
Absolute Maximum Ratings
| Parameter | Min | Max | Unit |
|---|---|---|---|
| Power Supply Voltage | 0 | 3.6 | V |
| Storage Temperature | -40 | 85 | °C |
| Operating Case Temperature (Standard) | 0 | 70 | °C |
| Operating Case Temperature (Industrial) | -40 | 85 | °C |
| Relative Humidity | 5 | 95 | % |
| RX Input Average Power | - | 0 | dBm |
Recommended Operating Conditions
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Power Supply Voltage | 3.135 | 3.3 | 3.465 | V |
| Power Supply Current | - | - | 350 | mA |
| Operating Case Temperature (Standard) | 0 | 25 | 70 | °C |
| Operating Case Temperature (Industrial) | -40 | 25 | 85 | °C |
Optical Characteristics
| Parameter | Value | Unit |
|---|---|---|
| Operating Reach | 60 km | m |
Transmitter
| Parameter | Value | Unit |
|---|---|---|
| Center Wavelength (Range) | 1270 / 1330 | nm |
| Side Mode Suppression Ratio (Min) | 30 | dB |
| Launched Power (Max Average) | 6 | dBm |
| Launched Power (Min Average) | 2 | dBm |
| Transmitter and Dispersion Penalty (Max) | 3.2 | dB |
| Average Launch Power of OFF Transmitter (Max) | -30 | dBm |
| Extinction Ratio (Min) | 3.5 | dB |
| RIN12 OMA (Max) | -128 | dB/Hz |
| Optical Return Loss Tolerance (Min) | 12 | dB |
Receiver
| Parameter | Value | Unit |
|---|---|---|
| Center Wavelength (Range) | 1270 / 1330 | nm |
| Receive Overload (Max Average Power) | -8 | dBm |
| Receive Sensitivity (Min Average Power) | -20 | dBm |
| Receiver Reflectance (Max) | -12 | dB |
| Vertical Eye Closure Penalty (Min) | 2.2 | dB |
| LOS Deassert (Max) | -27 | dBm |
| LOS Hysteresis (Min) | 0.5 | dB |
| Stressed Eye Jitter (Min) | 0.3 | UIp-p |
| Receive Electrical 3dB Upper Cutoff Frequency (Max) | 12.3 | GHz |
| Receiver Power Damage (Max) | 6 | dBm |
Digital Diagnostic Functions
| Parameter | Min | Max | Unit | Notes |
|---|---|---|---|---|
| Temperature Monitor Absolute Error | -3 | 3 | °C | Over operating temp |
| Laser Power Monitor Absolute Error | -3 | 3 | dB | - |
| RX Power Monitor Absolute Error | -3 | 3 | dB | -1dBm to -15dBm range |
| Supply Voltage Monitor Absolute Error | -0.08 | 0.08 | V | Full operating range |
| Bias Current Monitor | -10% | 10% | mA | - |
Electrical Characteristics
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Data Rate | - | 10.3125 | - | Gbps |
| Power Consumption | 800 | - | 1000 | mW |
| TX Input Diff Voltage | 180 | - | 700 | mV |
| RX Output Diff Voltage | 300 | - | 850 | mV |
| RX Output Rise/Fall Time | 30 | - | - | ps |
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.
Product Videos
Watch demos, overviews and installation guides related to this product.
Related Products
HIKVISION Camera
Contact for price
HSGQ-810P XPON MDU 8 Port SFP
Rs 10,665
Rs 10,539
D-TECH SFP 1.25G BIDI Tx1490/Rx1550nm DDM
Contact for price
100G CFP 1310nm SMF
Contact for price
100G QSFP28 LR4 Dual LC SMF DDM
Rs 122,145
Rs 121,240
.jpg)
OLA (Optical Line Station Amplifier Board)
Contact for price
800G OSFP112DD SMF Duplex LC 1310 nm
Contact for price
10G SFP+ 1310nm Dual LC
Rs 3,780
Rs 3,735
.jpg)
DCI (OTNS8600-DCI8 2U)
Contact for price

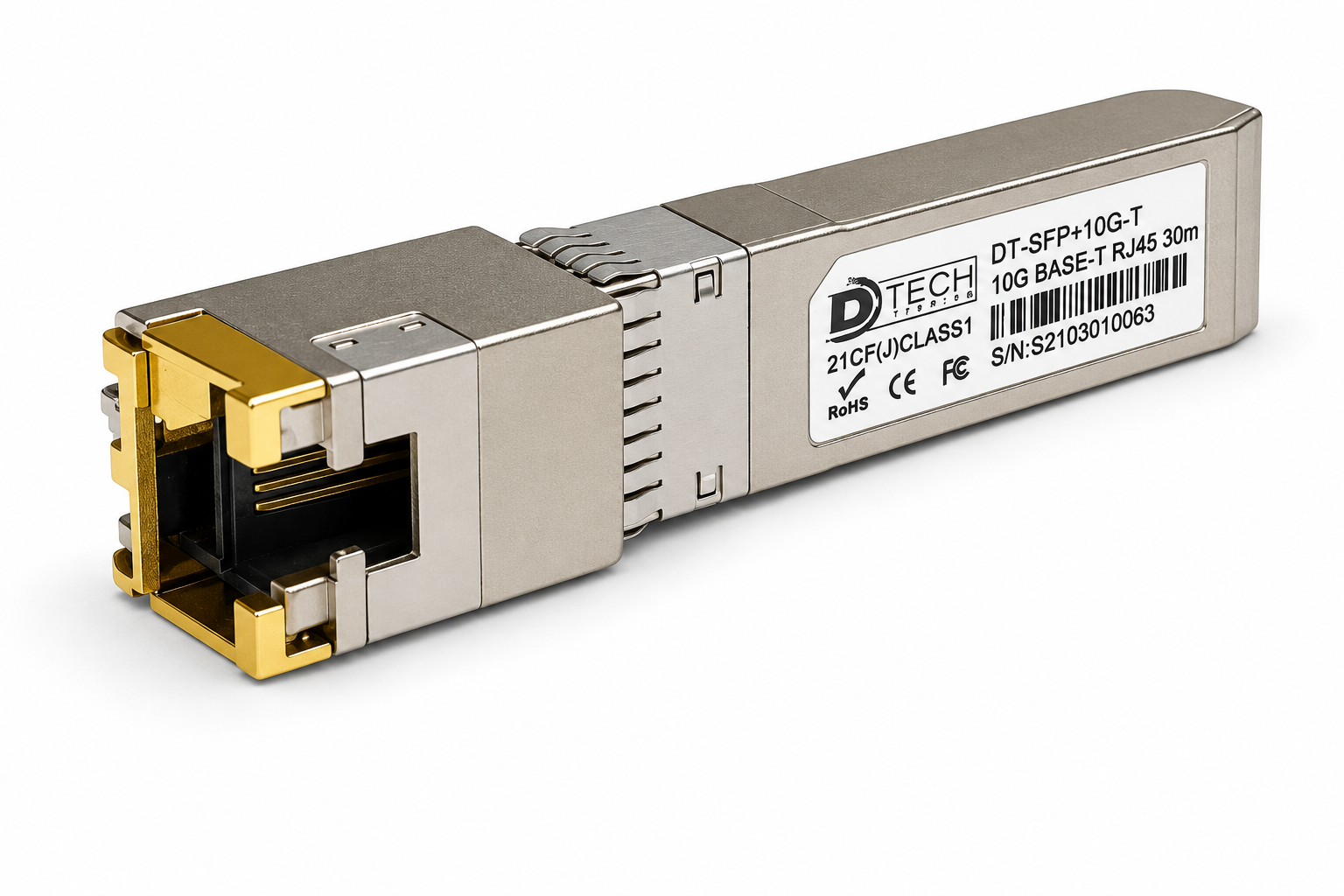

Copper SFP
