D-TECH SFP 10G BIDI Tx1270/Rx 1330nm DDM
40km LC
Brand:
D-TECH
Variant Specifications
Weight:
More Details:
Import Lead Time:
Package:
Warranty: 1 Year
Country of Origin: China
80KM LC
1% OFF
Rs 11,857.21
List: Rs 11,945.70
10G Optical Transceiver 40KM
Absolute Maximum Ratings
| Parameter | Min | Max | Unit |
|---|---|---|---|
| Power Supply Voltage | 0 | 3.6 | V |
| Storage Temperature | -40 | 85 | °C |
| Operating Temperature | 0 | 70 | °C |
| Industrial Temperature | -40 | 85 | °C |
| Relative Humidity | 5 | 95 | % |
| RX Input Power (Max) | - | 6 | dBm |
Recommended Operating Conditions
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Power Supply Voltage | 3.135 | 3.3 | 3.465 | V |
| Power Supply Current | - | - | 350 | mA |
| Operating Temperature | 0 | 25 | 70 | °C |
| Industrial Temperature | -40 | 25 | 85 | °C |
Optical Characteristics
| Parameter | Value | Unit |
|---|---|---|
| Operating Reach | 40 km | m |
| Wavelength | 1270 / 1330 | nm |
| Output Power | 1 ~ 6 | dBm |
| Extinction Ratio | ≥ 3.5 | dB |
| Receiver Sensitivity | -14.4 | dBm |
| Receiver Overload | 0.5 | dBm |
| LOS Assert | -30 | dBm |
| LOS Deassert | -12 | dBm |
Digital Diagnostic Monitoring (DDM)
| Parameter | Range | Accuracy |
|---|---|---|
| Temperature | 0 ~ 70°C | ±3°C |
| Voltage | 3.0 ~ 3.6V | ±3% |
| TX Power | -8 ~ 2 dBm | ±3 dB |
| RX Power | -26 ~ -3 dBm | ±3 dB |
Electrical Characteristics
| Parameter | Value | Unit |
|---|---|---|
| Data Rate | 10.3125 | Gbps |
| Power Consumption | 800 – 1000 | mW |
| TX Input Voltage | 100 – 700 | mV |
| RX Output Voltage | 300 – 850 | mV |
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.
Product Videos
Watch demos, overviews and installation guides related to this product.
Related Products
XGSPON Combo PON OLT
Contact for price
RJ Connector
Contact for price
800G OSFP224 MMF MPO Duplex 850nm
Contact for price
 & (Blue 45-52)1U - 8CH (2).png)
DWDM MUX AND DEMUX (Red 29-36) & (Blue 45-52)1U - 8CH
Rs 77,760
100G CFP2 1310nm SMF
Contact for price
Fiber Managed Switch HSGQ 7912
Rs 38,230
Rs 37,947
Reyee Wi-Fi 6 AX1800 Ceiling-Mount Access Point
Rs 20,991
Rs 20,835
.jpg)
IK-W5+(300Mbps Wireless In-Wall Access Point)
Contact for price
800G OSFP112DD SMF Duplex LC 1310 nm
Contact for price

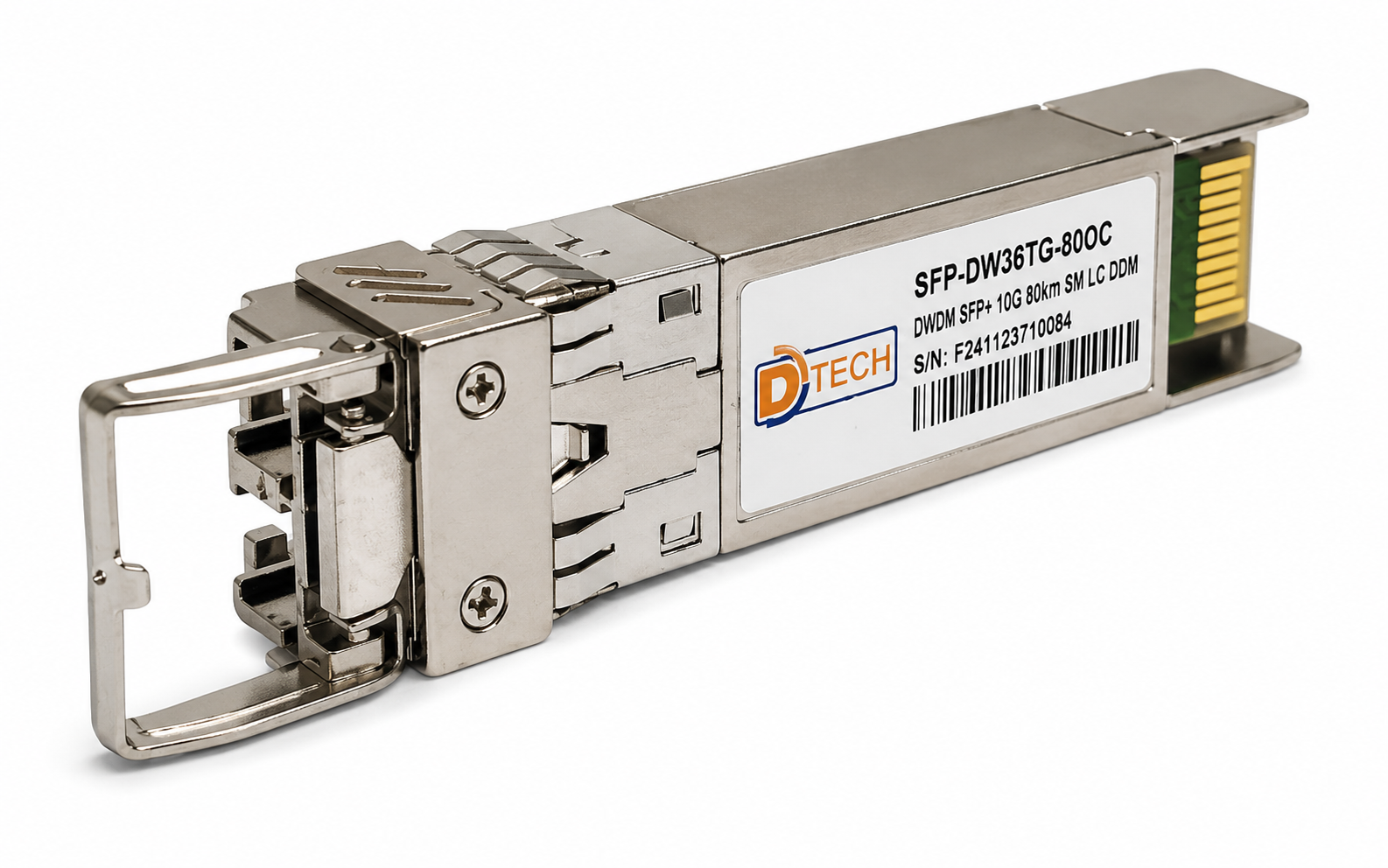

DWDM SFP 10G 80KM SM LC, DDM
