Audio to fiber converter Terminal port
1CH bidirectional
Variant Specifications
Warranty:
Weight:
Country of Origin:
More Details:
Import Lead Time:
Package:
4CH Un-bidirectional
Rs 4,969.90

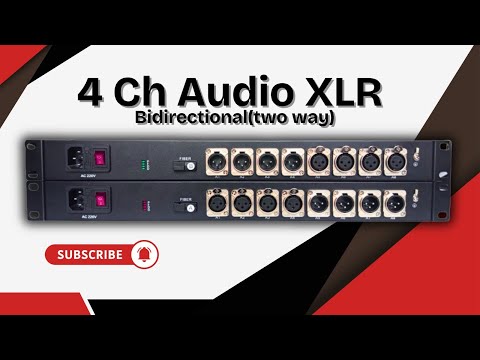

Audio to Fiber Converter
The Audio to Fiber Converter uses advanced digital optical transmission technology to provide synchronous, distortion-free, and high-quality transmission over a single fiber.
It supports audio, data, Ethernet, and telephone signals with fully digital, uncompressed transmission. The device is easy to install and does not require on-site adjustment. High-quality optical modules and stable core circuits ensure reliable performance in different working environments.
Key Features
| Independent structure, suitable for 2U rack installation |
| Uncompressed, real-time signal transmission |
| Gigabit optical fiber transmission with good capacity and easy upgrade |
| Advanced circuit design ensures reliability, consistency, and stability |
| LED indicators for power and system status monitoring |
| Supports single-mode and multi-mode optical fiber transmission |
| Supports FC / SC / ST optical fiber interfaces |
| Maximum single-mode transmission distance up to 120 km without repeater |
Technical Specifications
| Category | Specification |
|---|---|
| Signal Type | Data, Ethernet, Audio, Telephone |
| Channel | 1 Channel |
| Wavelength | 850 nm / 1310 nm / 1550 nm |
| Output Power | -9.5 ~ -3 dBm @ 850 nm |
| Sensitivity | -15 dBm @ 850 nm |
| Fiber Port | Single Fiber FC / SC / ST |
| Transmission Distance | Multi-mode: up to 2 km Single-mode: up to 10 km |
| Power Supply | DC 5V |
| Power Consumption | < 10W |
| Ethernet Port | RJ45 10/100M |
| Ethernet Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Data Interface | Industrial-grade terminal block (Phoenix terminal) |
| Data Signal | RS-232 / RS-422 / RS-485 |
| Data Rate | ≤ 384 Kbps |
| Audio Interface | Unbalanced audio |
| Audio Input / Output Impedance | 600Ω (unbalanced) |
| Max Audio Input / Output Voltage | 2 Vp-p |
| Frequency Response | 10 Hz ~ 20 kHz |
| Total Harmonic Distortion | < 0.05% |
| Audio SNR | > 95 dB |
| Audio Connector | Terminal block |
| Telephone Interface | Point-to-point hotline, PBX / extension mode |
| Voice Bandwidth | 8 kHz |
| Telephone Distortion | < 1% |
| Telephone SNR | > 95 dB |
| Telephone Port | RJ11 or terminal block |
| Closure / Alarm Interface | Passive alarm, switch signal |
| Signal Input / Output | Supports TTL, passive switch, button signal output |
| Closure Connector | Industrial-grade terminal block (Phoenix terminal) |
| Operating Temperature | 0 ~ 55℃ |
| Storage Temperature | -20 ~ 70℃ |
| Operating Humidity | 0 ~ 95% |
| MTBF | > 30,000 hours |
The Audio to Fiber Converter uses advanced digital fiber transmission technology for real-time, distortion-free audio and data transmission. It supports single or multimode fiber with a range of up to 120KM. Features include uncompressed signal transfer, multiple interface options (FC/SC/ST), and compatibility with Ethernet, data, audio, and telephone signals. It's reliable, easy to install, and ideal for versatile applications with stable performance in various environments.
