Product Specifications | |
Interface | 2 GPON Ports |
| | 4 x GE RJ45 |
| | 1 x 10G SFP+ |
| | ITUT G.984.x/G.988 |
Password Authentication Modes | Terminal Access |
Distance | Up to 60km on a single fiber |
Split Ratio | 1:128 split ratio on single PON port |
DBA Algorithm | Particle for 64 Kbs |
Management Functions | Standard OMCI management function |
| | ONU batch software upgrade |
| | PON port optical parameter detection |
| | Auto registration ONU bound with default profile |
Memory | 128MB |
Flash | 512MB |
DDR Size | |
Weight | <5kg |
Management Ports | Console port |
Environment | Operating Temperature: -10°C - 55°C |
| | Storage Temperature: -40°C ~ 70°C |
| | Storage Humidity: 5%–95% (non-condensing) |
Power Supply | AC 100V-240V 50/60Hz |
| | DC 12V |
Redundancy Design | dual power supply can be chosen |
Power Consumption | <10W |
Platform Management Features | |
Device List | Project Management |
| | Version Release |
| | License Management |
| | Permission Management |
| | User Management |
| | CLI, WEB, SNMP, NMS, and CLOUD |
| | Software and Bootrom Upgrade by TFTP and FTP |
Product Specifications | Status |
| | L2 Function |
| | PON Status |
| | Uplink Status |
| | Performance Monitor |
| | System Monitor |
| | Support VLAN |
| | Support Port Mirror |
| | Support Storm Control |
| | Support IGMP Snooping/Proxy |
| | Support MAC Black Hole |
| | Support Port Isolation |
| | Encryption of PON port transmitting data |
Key Features | |
MAC Address Table | 18K MAC address table |
DBA | Flexible DBA for up-and-down traffic speed control |
Traffic Control | Port-based traffic control |
| | Traffic shaping |
ONL Identification | Automatic identification, auto-discovery, and auto-registration |
VLAN Support | Flexible and controllable multicast support supports IGMP snooping |
Cloud Management | |
Product Advantages | |
Uplink Flexibility | Support for electrical and optical modules and flexible configuration according to different networking |
Optical Link Diagnosis | Warning mechanism for optical links |
High Reliability | Dual power supply support |
Dimension | 1U cassette design saves space and has low power consumption |
Capacity | Each PON supports up to 128 terminals; the whole device supports up to 256 ONUs under full configuration. |
Ordering Information | |

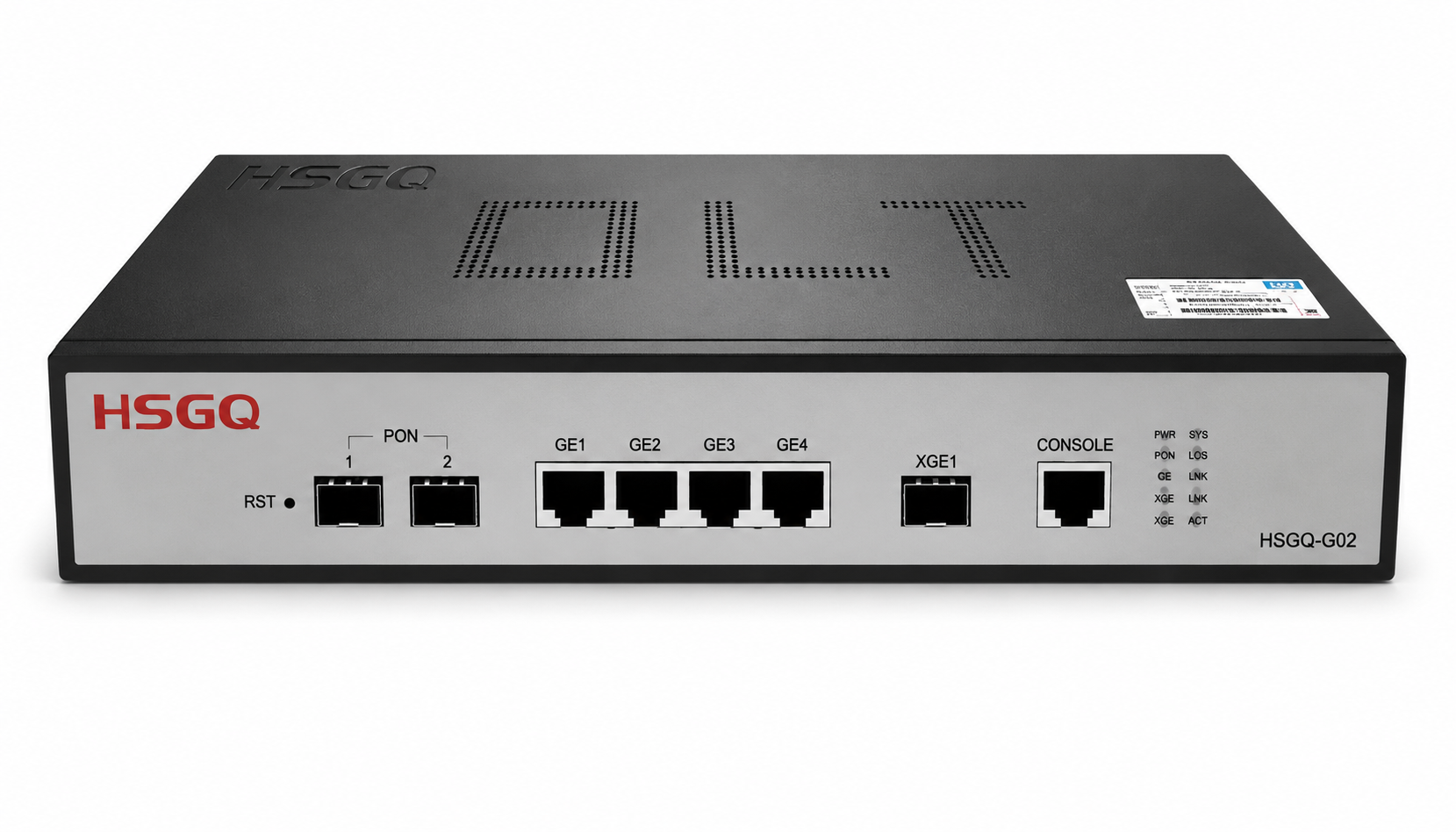

Product Model | HSGQ-G02 |
Description | 2 GPON Ports |
| | 4 x GE RJ45 |
| | 1 x 10G SFP |
