HDMI Extender Over Fiber FC UPC
The HDMI Extender Over Fiber is a commercial-grade solution designed for long-distance, high-quality video transmission. It supports flexible network configurations, high-resolution output, and reliable performance for applications such as CCTV, LED walls, conferencing, and education systems.
Technical Specifications
| Category | Specification |
|---|---|
| Product Type | HDMI Extender Over Fiber |
| Application | Video Transmission, CCTV, LED Wall, Conference, Education |
| Video Resolution | Up to 1920 × 1080P @ 60Hz |
| Compatibility | Backward compatible with lower resolutions |
| Transmission Type | Optical Fiber + TCP/IP Network |
| Transmission Mode | Point-to-Point / Point-to-Multi / Multi-to-Multi |
| Max Nodes | Up to 255 devices |
| Fiber Type | Single Mode / Multi Mode |
| Transmission Distance |
MM: Up to 1 km SM: Up to 20 km (Up to 120 km optional) |
| Fiber Connector | SC (Default), FC / LC / ST (Optional) |
| Wavelength | 1310 – 1550 nm |
| TX Power | > -8 dBm |
| RX Sensitivity | > -26 dBm |
| Protocol Support | TCP/IP over Ethernet Switch |
| Audio Support | 24-bit Embedded Audio + 3.5mm Analog Audio |
| Audio Function | Audio Embed / De-embed |
| IR Control | Reverse IR Supported |
| KVM Function | Keyboard & Mouse Control Supported |
| HDMI Loop Out | Supported (Local Monitoring) |
| HDCP | Supported (Decryption Engine) |
| EDID | EDID Transparent Transmission |
| Protection | Built-in ESD Protection |
| Installation | Plug & Play |
| Device Type | Transmitter (TX) + Receiver (RX) |
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.

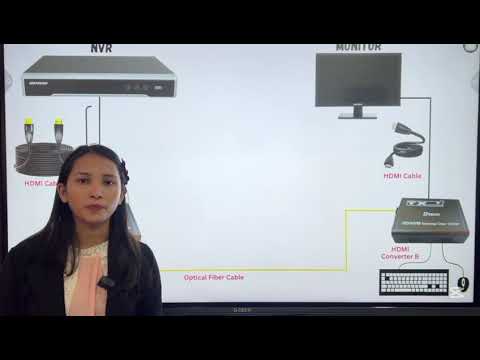

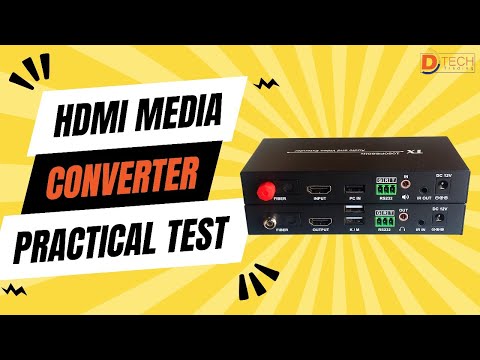

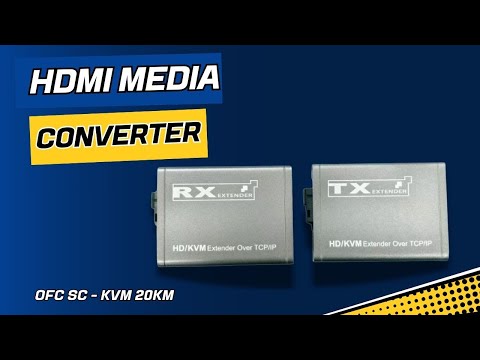

Product Videos
