PoF MDU XPON ONU
Variant Specifications

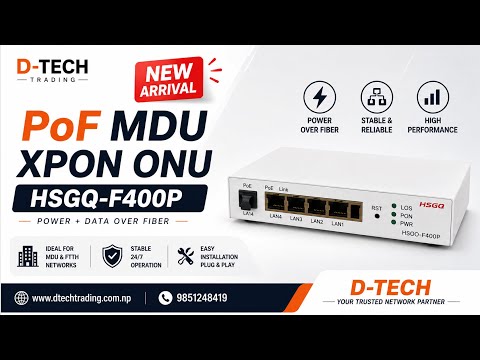

HSGQ-F400P Industrial GPON / EPON PoF ONU with 4GE PoE Ports
Industrial XPON ONU • 4× Gigabit PoE • Power over Fiber (PoF) • Cloud Management • Industrial Temperature
The HSGQ-F400P Industrial GPON / EPON PoF ONU is a high-performance industrial optical network unit designed for FTTH, industrial networking, outdoor CCTV, smart city infrastructure, telecom operators, ISPs, and Power over Fiber (PoF) applications.
Supporting both GPON and EPON auto-adaptive technology, the HSGQ-F400P delivers optical communication and remote PoE power through an optical composite cable. It features 4 Gigabit Ethernet PoE output ports, making it ideal for powering IP cameras, wireless access points, industrial controllers, and other remote Ethernet devices without requiring local AC power.
Key Features
Technical Specifications
| Category | Specification |
|---|---|
| Model | HSGQ-F400P |
| User Interface | 4 × Gigabit Ethernet RJ45 (PoE) |
| PON Interface | 1 × GPON / EPON Adaptive SC Port |
| Interface Mode | Optical Composite Cable (PoF) |
| GPON Speed | Downlink 2.5Gbps / Uplink 1.25Gbps |
| EPON Speed | Downlink 1.25Gbps / Uplink 1.25Gbps |
| Transmit Optical Power | 0 ~ +4 dBm |
| Receive Optical Power | GPON: -7 ~ -28 dBm EPON: -7 ~ -27 dBm |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Output | 30W Maximum Per Port |
| Total PoE Power | 120W Maximum |
| PoE Pin Assignment | 1/2 (+), 3/6 (-) |
| Input Voltage | 48V ~ 57V DC |
| Power Consumption | <130W |
| Dimensions | 190 × 85 × 28 mm |
| Operating Temperature | -30°C ~ +70°C |
| Operating Humidity | 0% ~ 85% RH (Non-condensing) |
| Storage Temperature | -40°C ~ +80°C |
| Storage Humidity | 5% ~ 95% RH (Non-condensing) |
LED Indicators
| Indicator | Description |
|---|---|
| PWR | Power Status |
| PON | ONU Registration Status |
| LOS | Optical Signal Status |
| LAN | Ethernet Link Status |
| POE | PoE Power Status |
Applications
Why Choose D-TECH?
D-TECH supplies high-quality Industrial GPON/EPON ONUs, PoF Solutions, Industrial Ethernet Switches, OLTs, Optical Fiber Cables, and FTTH networking equipment for ISPs, telecom operators, industrial automation, and surveillance projects throughout Nepal. We also provide technical consultation, deployment support, and after-sales service for complete fiber optic networking solutions.
